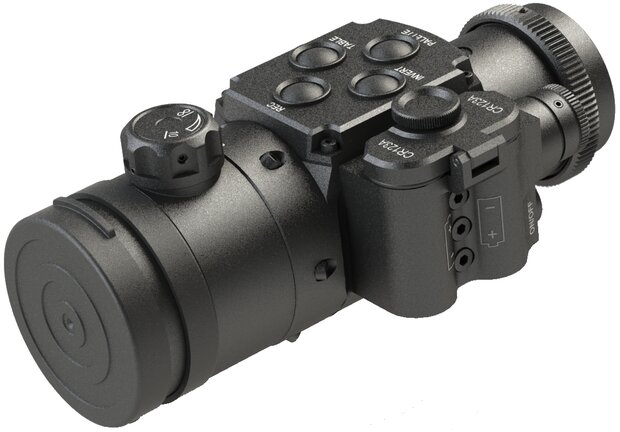

Dipol TFA 2.0 SL Thermische voorzetkijker / Handkijker. Gemakkelijk te gebruiken op uw bestaande richt kijker. Optimaal warmtebeeld DEMO.
Model TFA 2.0 SL
Sensor, array format/ Pixel pitch: 384 x 288 / 17μm
Lens: focal length: F40 / 1,0
Magnification: 1x
Field of view, degree: 9,3 °х 7,0°
Detection range (object of 0.5x1.8m, Johnson’s criteria), m: 2000
Spectral response, um: 8-14
Frame rate, Hz: 50

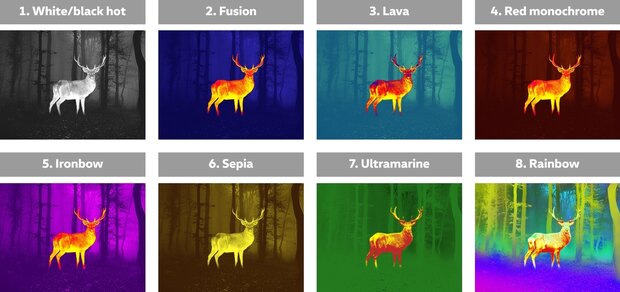

Colour palets / Inversion: 9 / Yes
Microdisplay, type, resolution: OLED 1024 x 768
Exit pupil diameter, mm: 30
Maximum impact load, G: 600
Batteries, type: 2 x CR123A Lithium
Accumulator, type: 2 x LC16340
Outer supply / Jack 2,1: 9,5-14,5V / DC 5,5 x 2,1 mm
USB: 5V / micro USB
Operating time (at +20C° ), hour (without recording): 4
Operating temperature, C°: -20 … +50
Videorecording temperature range , C°: -15 …. +50
Degree of protection by IEC 60529: IP66
Dimensions, mm: 178 x 76 x 105
Weight, kg: 0,57
Large exit pupil
The 30mm exit pupil ensures larger eyebox and better viewing comfort for more quickness and accuracy.
Aluminium housing
Very robust and light aluminum housing efficiently conducts the heat out of the device and ensures effective cooling and flawless operation.
Large OLED microdisplay
A high quality image due to 1024x768 display resolution and wide operating temperature range from -20 to +50 CO. The integrated contrast enhancement system ensures a sharp image of objects with even smallest temperature differences.
Shutterles (SL) Technology
The high-performance thermal image sensor delivers an uninterrupted image without delays with a signal transmission frequency of 50 Hz. Sensor has a very robust construction with high shock resistance.
Power efficiency
The low power consumption of the thermal imaging sensor increases the operating time to over k hours when using batteries from well-known brand manufacturers. A power bank with 5000 mAh can even triple this time.

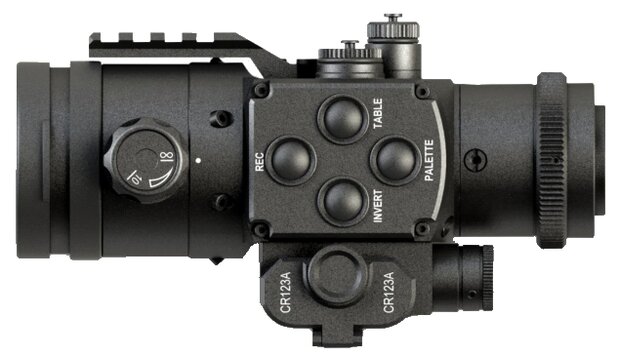

Simple & intuitive control
Like all DIPOL devices, the TFA 2.0 / 2.8 SL have a simple and intuitive control - a very successful concept in diverse hunting situations.
A practical menu is mastered with just one controller, which is also used for quick image and thermal sensor performance adjustments. The MENU controller is easy to operate even when wearing gloves.
Simple adjustment concept
Very simple adjustment concept enables repeatably accurate mounting and precise sighting without additional material costs.
Long detection range
Due to maximized heat conduction, the new large lens (40mm for TFA 2.0 SL) delivers a high-contrast and detailed image in very high resolution. Object detection and recognition are now possible at distances of 2000m / 800m with TFA 2.0 SL.
Video recording
With the integrated video recording function you can capture the most precious moments of your hunt. Recording format 960x720 for TFA 2.0 SL and 800x600 pixels for TFA 2.8 SL. The distance-dependent vertical focusing ensures high image quality and precision.
Support rail
The device can be optionally equipped or retrofitted with a Weaver support rail.
Rain & Splaschwaterproof
DIPOL TFA 2.0 SL are protected against splash water and heavy rain.

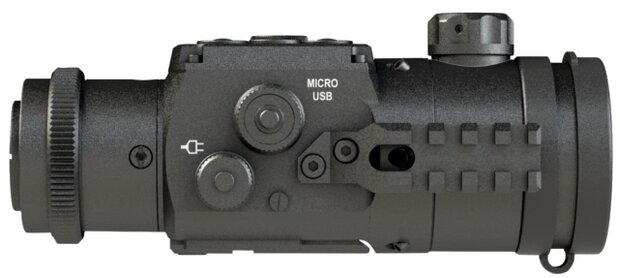

Jack 2.1 micro USB
External power sources such as Powerbanks can be connected via micro USB or Jack 2.1 slot. The device is supplied with a UPS cable and a locking cap.
ACCESSOIRES:

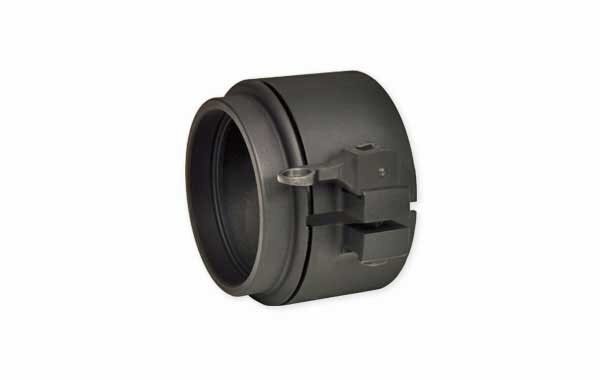

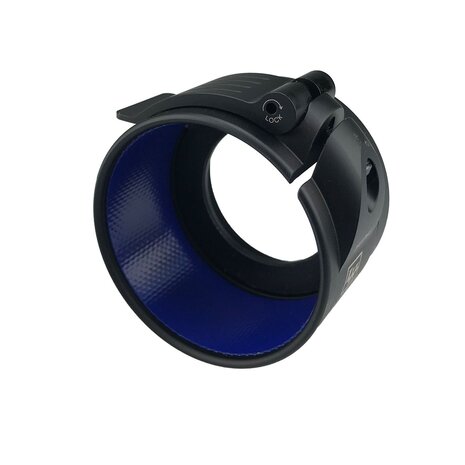

Dipol, RUSAN of SMARTCLIP speciaal Snelspan adapter voor op de richtkijkers
Gummi oculair zonder vergroting om als observatie kijker te gebruiken
2x vergrotings oculair om als observatie kijker te gebruiken
6x vergrotings oculair om de front sniper als observatie kijker te gebruiken
LET OP: bijvoorbeeld bij Blaser kan de richtkijker erg laag op het wapen gemonteerd zijn en heeft het geen ruimte om de adapter over de richtkijker te schuiven. Hiertoe moet de ruimte vergroot worden, zodat de kijker met adapter vrij boven de loop of voorhout/keep hangt. Minimale afstand tussen richtkijker met de loop en de Front Sniper met Adapter moet ca. 0,5 cm zijn. Als u niet zeker bent over het wapen en gemonteerde richtkijker, bel ons voor advies.
