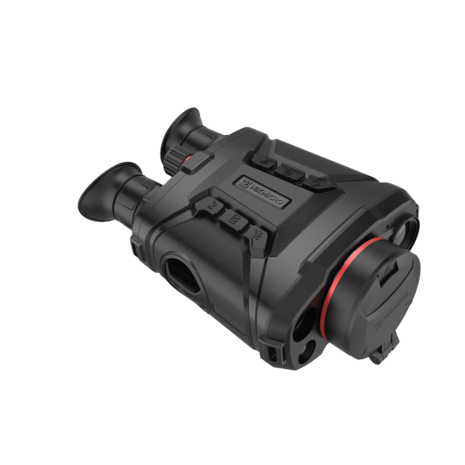

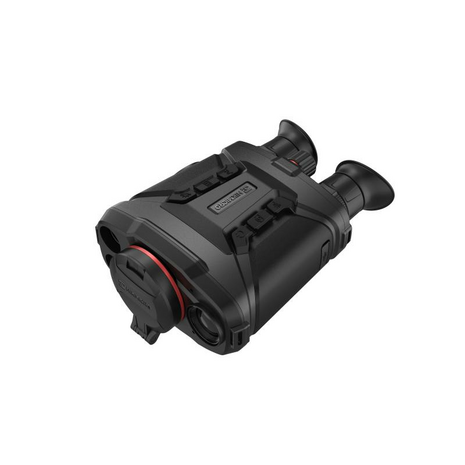

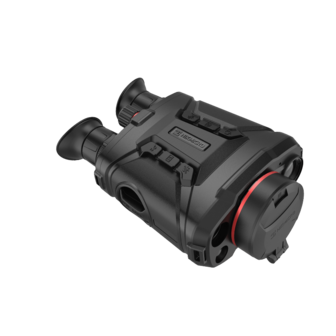

HIKMICRO Binocular RAPTOR RQ50LN (IR 940nm) Warmtebeeld & Nachtzicht (2 in 1)
Break through visual limitation

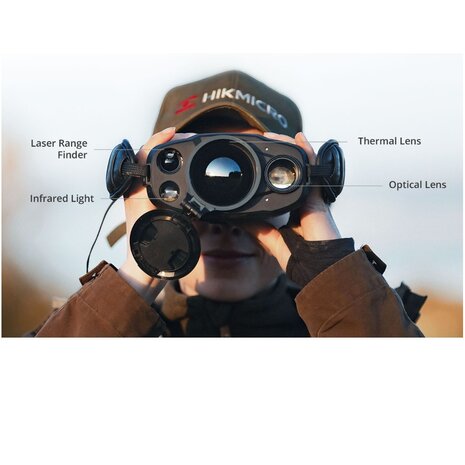

The All-In-One Solution
In combination with thermal camera, digital day & night camera, and laser rangefinder, the ultimate innovative RAPTOR series binocular provides unprecedented observation capability in thermal or true living color, up close or from a distance, during day or night in adverse weather to break through your visual limitation.

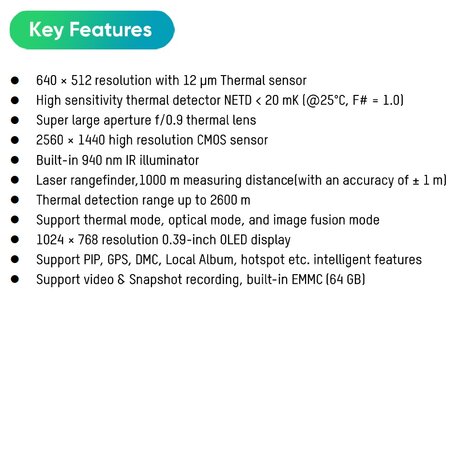

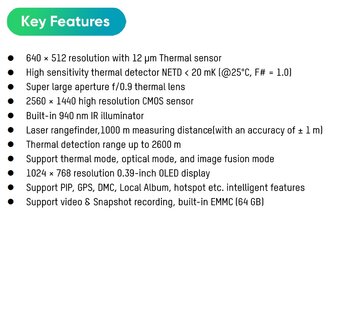

01. 20mK High Sensitivity Thermal Camera
- Extremely high thermal sensitivity, NETD<20mK
- High Definition Thermal Sensor, up to 640x512 @12μm
- Super large aperture f/0.9 lens, 19% improvement
- Image Pro, enhanced self-developed image processing algorithm
- Long detection range up to 2600m with a standard 1.7m tall object
- Powerful magnification up to 91x, up to 5.7x optical magnification in combination with 16x digital zoom.

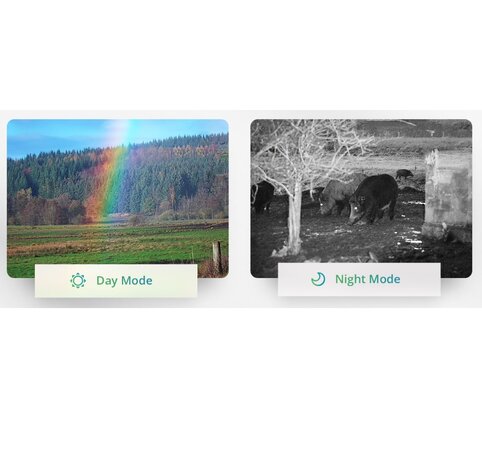

02. 2560x1440 HD Day & Night Camera
High resolution image2560x1440, delivering bright and vivid image at daytime
Support low light conditions 0.001Lux. With built-in 850nm or 940nm IR illuminator, the image is still visible clearly under complete darkness.
The unique defog mode ensures the image clarity during foggy day.

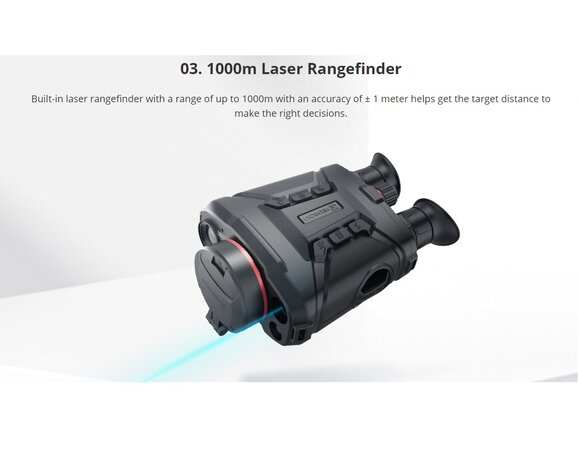

03. 1000m Laser Rangefinder
Built-in laser rangefinder with a range of up to 1000m with an accuracy of ± 1 meter helps get the target distance to make the right decisions.
Purpose-Built Intelligent Features

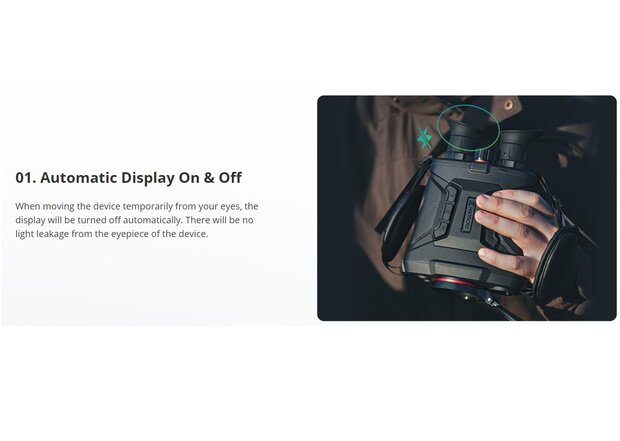

01. Automatic Display On & Off
When moving the device temporarily from your eyes, the display will be turned off automatically. There will be no light leakage from the eyepiece of the device.

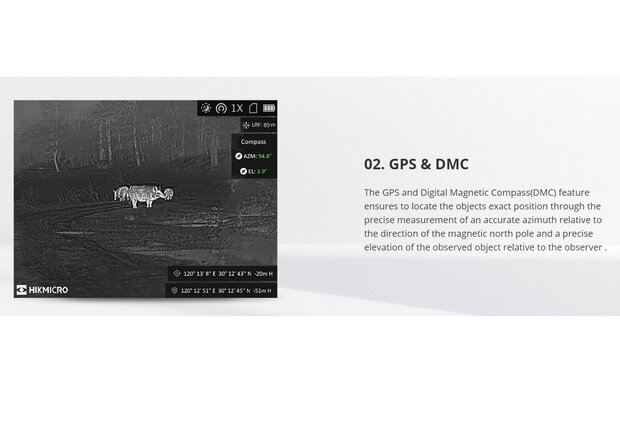

02. GPS & DMC
The GPS and Digital Magnetic Compass(DMC) feature ensures to locate the objects exact position through the precise measurement of an accurate azimuth relative to the direction of the magnetic north pole and a precise elevation of the observed object relative to the observer.

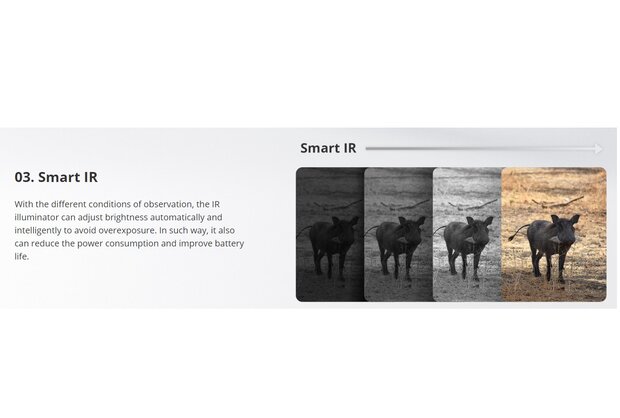

03. Smart IR
With the different conditions of observation, the IR illuminator can adjust brightness automatically and intelligently to avoid overexposure. In such way, it also can reduce the power consumption and improve battery life.
04. Local Album
The recorded photo and video can be browsed in local album of the device for more convenient and quick viewing.
Groundbreaking and Pratical Design

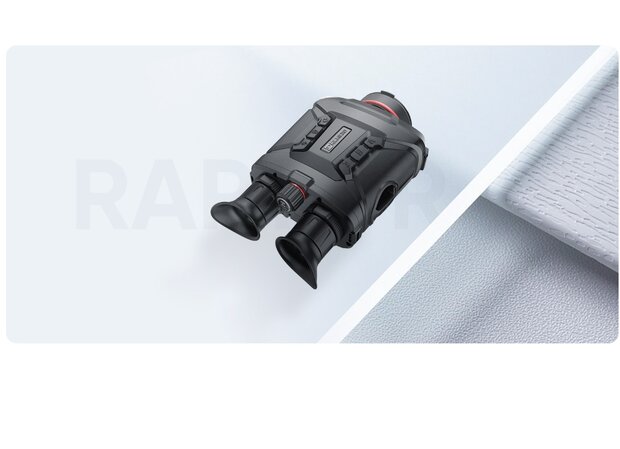

01. Designed by the Red Dot award-winning designer
The RAPTOR series, designed by the Red Dot award-winning designer team, not only meet the real needs of users, but also allow users to experience the aesthetic beauty of technology.
02. Intuitive Operation
The interpupilary distance of RAPTOR is adjustable from 60mm to 70mm to satisfy different users’ demands, and also it supports the diopter range from -5 D to +3 D. The intelligent button arrangement is perfect for the intuitive operation.
Specifications
Thermal Module
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Frame Rate: 25 Hz
Pixel Interval: 12 μm
NETD: ＜20mk (@25°C,F#=1.0)
Lens (focal length): 50 mm
Detection Range: 2600 m
Focus Mode: Manual
Field of View(H × V), Degrees / m @100m: 8.8 ° × 7.0 ° （H × V）/ 15.4 m × 12.2 m
Min. Focusing Distance: 5 m
Aperture: F 0.9
Magnification: 3.4 ×
Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×, 16 ×
Optical Module
Image Sensor: 1.88'' Progressive Scan CMOS
Max. Resolution: 2560 x 1440
Min. Illumination: 0.001 lux @ (F1.0 , AGC On)
Focal Length: 31 mm
Image Enhancement: YES
Aperture: F 1.2
IR Illuminator Wavelength: 940nm
Viewing Range at Night (With Thermal): 2600 m
Viewing Range at Night (With Nightvision): 350 m
Smart IR: YES
Image Display
Display: 0.39 inch, OLED, 1024 ×768
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

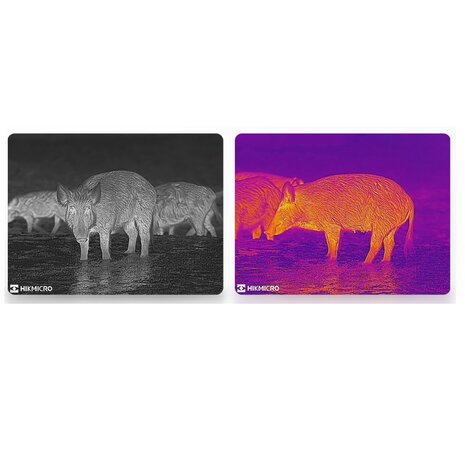

Image Mode: Optical、Fusion、White Hot、Black Hot、Red Hot、Image Fusion
Diopter (Range): -5 D to +3 D
Optical Mode: Day、Night、Auto、Defog
Image Pro: YES
General
Protection level: IP67
Weight: 1120 g

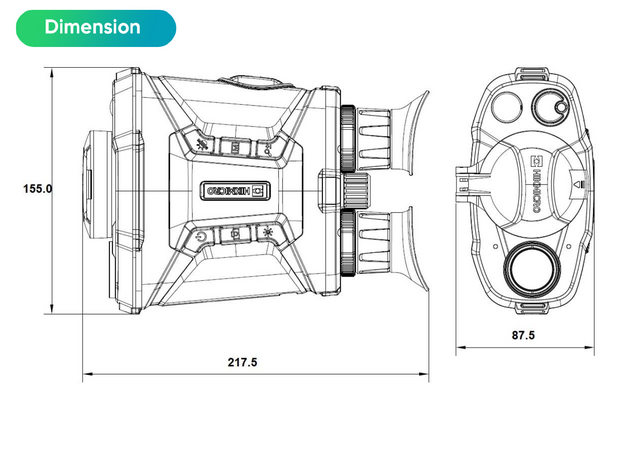

Dimension: 217.5 mm × 155.0 mm × 87.5 mm
Accessory: Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Quick Start Guide, Six Batteries, Adaptor,Carrying Case
Working Temperature: -30 °C to 55 °C
Working Humidity: <90%
Storage Temperature: -40 °C to 70 °C
Eye-Relief: 15 mm
Interpupillary Adjustment Range: 60 mm to 70 mm
Mounting Adapter: 1/4“-20-UNC
System
Built-in Memory: 64 GB
Record Video: MP4 , 1600 × 1200
Capture Snapshot: JPEG , 1600 × 1200
Hotspot: Yes
GPS: Yes
Digital Magnetic Compass: Yes
Standby Mode: Yes
PIP: Yes
Hot Track: Yes
Audio Recording: Yes
Proximity sensor: Yes
Multiple Language: Yes
Local Album: Yes
Supported Application: HIKMICRO Sight
Power Supply
Battery Type: Replaceable and Rechargeable Li-ion Battery
Battery Operating Time: 8 hours continuous running with hotspot function off (@25°C)
Type-C Power Supply: Yes
Laser Rangefinder
Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 1000 m
Measurement Accuracy: ± 1 m

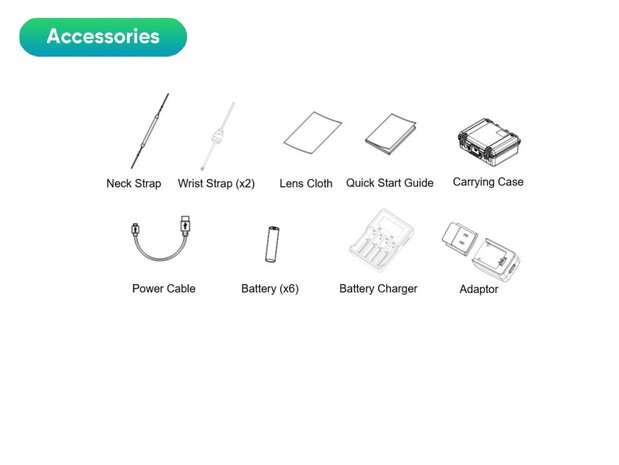

Delivery
- HIKMICRO RAPTOR RQ50LN (IR 940nm)
- Neck Strap
- Wrist strap (x2)
- Lens cloth
- Quick start guide
- Carrying case
- Power cable
- Rechargeable Battery (x6)
- Battery charger
- Adapor
