HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld
HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld HIKMICRO LYNX Pro LH19 Warmtebeeld
HIKMICRO LYNX Pro LH19 Warmtebeeld
384 Ă— 288 resolution, Detectie afstand 897 m

Artikelnummer

HM-TS03-19XG/W-LH19

Standaard levertijd

uit voorraad leverbaar

€ 1.389,00
€ 1.349,00
Prijs per stuk
Aantal:
Bestellen


Warmtebeeld HIKMICRO LYNX Pro LH19

01-Compact Size, Easy to Carry_LYNXPro.jpg
02-Advanced VOx 12 ÎĽm Imaging Sensor_LYNXPro.jpg

03-Long Detection Range_LYNXPro.jpg
05-Wi-Fi Hotspot for T-Vision Mobile App_LYNXPro.jpg

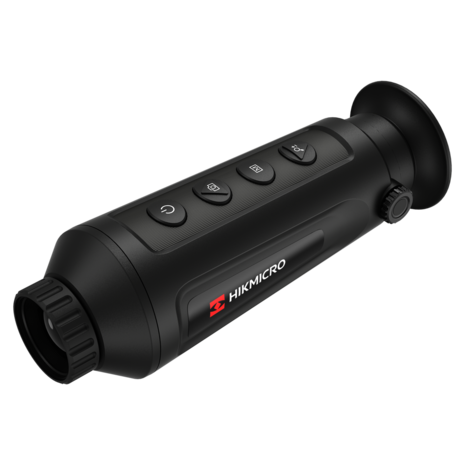

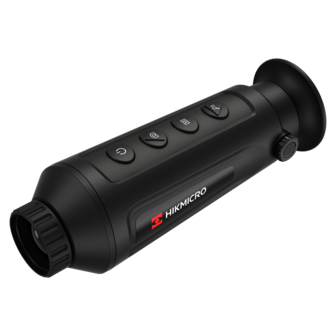

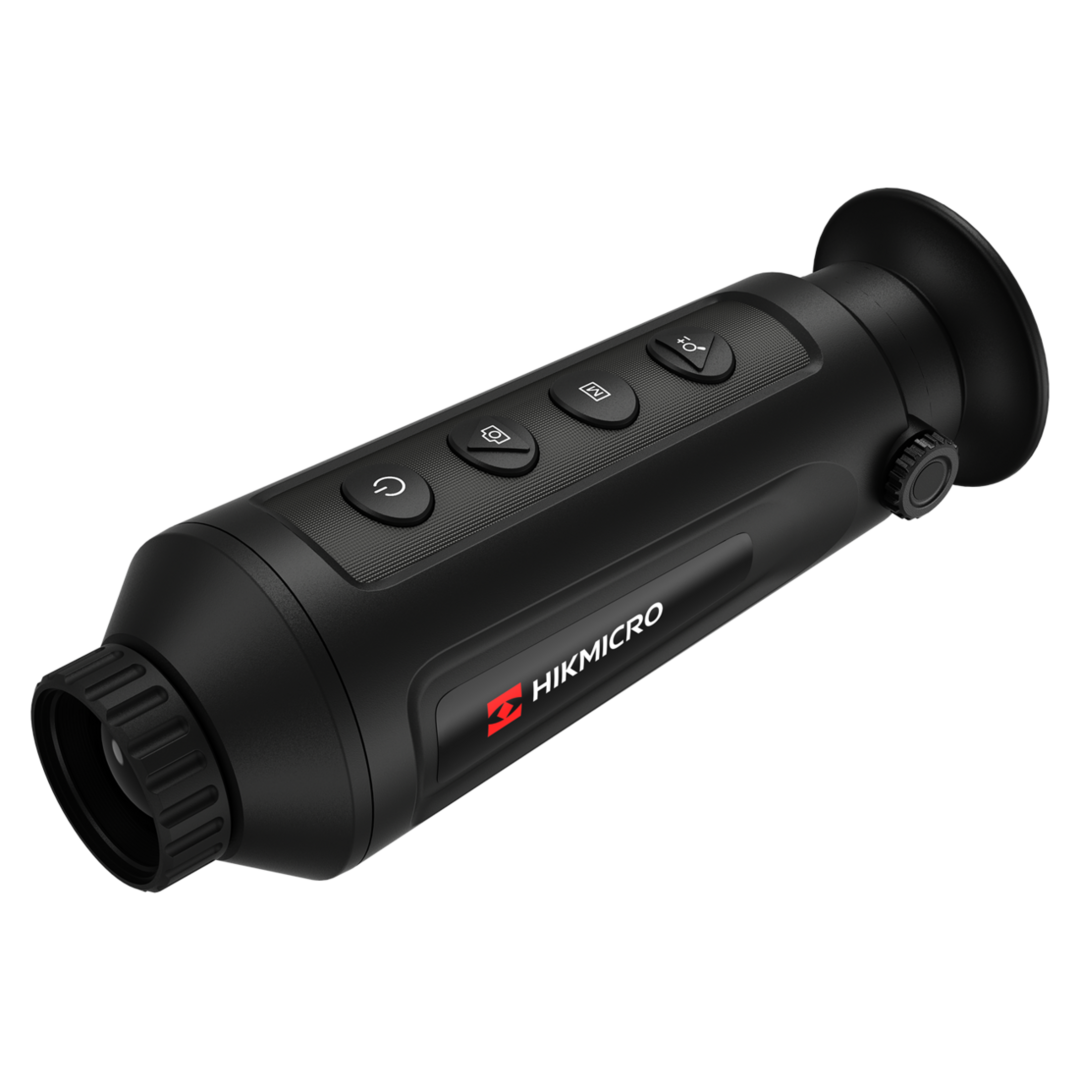

HikMicro LYNX Pro LH19 handheld thermal monocular camera is equipped with a 384 × 288 infrared detector and a 1280 ×
960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity
built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios
such as patrolling, searching and rescuing, hiking, travel, and hunting, etc.

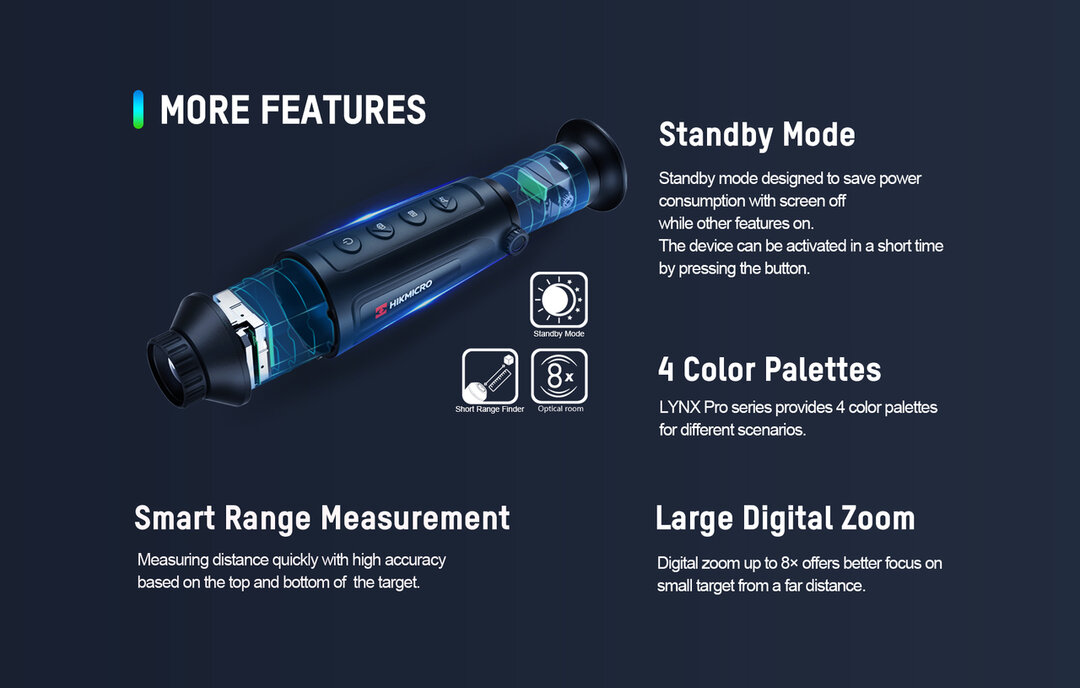

Key Features
  • 384 × 288 resolution, 12 μm, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
  • 1280 × 960 resolution 0.4-inch LCOS display
  • Built-in rechargeable lithium battery
  • Up to 7.5 hours continuous running
  • Wi-Fi hot spot
  • Type-C Interface

Specifications

Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 384 × 288
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: less than 35 mk (@25°C), F#=1.0
Focal Length: 19 mm
Field of View: 13.8° × 10.4° (H × V)
Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×
Aperture: F1.0
Magnification: 1.86 to 14.88

Image Display
Monitor: 0.4 inch, LCOS, 1280 × 960
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Frame Frequency: 50 Hz

Smart Function
Hot Track: Yes
Distance Measurement: Yes
Detection Range: 897 m

System
Storage: Built-in memory module (8 GB)
Record Video: Yes
Capture Snapshot: Yes

Power Supply
Battery Type: Lithium Battery
Battery Operating Time:
7.5 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C).
6 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C).
Battery Capacity Display: Yes

General
Power: 5 VDC/2 A, 1.5 W, Type-C Interface
Work Temperature/Humidity: From --20 °C to 55 °C (-4 °F to 131 °F)
Protection Level: IP67
Dimension: 171 mm × 61 mm × 57 mm (6.73" × 2.40" × 2.24")
Weight: 300 g (0.66 lb)
Wi-Fi Code: always the 9 last numbers and letters of the Serial number



What is in the box

  • HIKMICRO LYNX Pro LH19
  • Quick start guide
  • non-dust cloth
  • USB Cable
  • Protective Bag
  • Wrist strap
