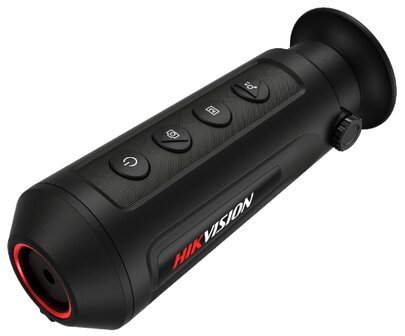

Warmtebeeld HIKVISION DS-2TS01-06XF/W
De Warmtebeeld HIKMICRO DS-2TS01-06XF/W
is een prachtige
handheld thermische observatie monoculair en is uitgerust met een 160 × 120 pixels (infrarooddetector) en een 720 × 540 LCOS-scherm. Het ondersteunt observatiefuncties, het detecteren van wilde dieren, indringers en andere warme objecten op de hoogste temperatuur, afstandsmeting, Wi-Fihotspot, enzovoort. De zeer gevoelige ingebouwde thermische detector biedt u een helder zicht, zelfs in totale duisternis. De monoculair is uiterst geschikt voor het aanzitten.
- High sensitivity thermal module with 160 x 120 resolution
- NETD < 35 mk (@25° C, F#=1.0)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- 720 × 540 resolution 0.2-inch LCOS display
- Built-in rechargeable lithium battery
- Up to 10 hours continuous operation
- Wi-Fi hot spot
- Type-C Interface
Thermal Module
Image Sensor: VOx Uncooled Focal Plane Arrays
Resolution: 160×120
Frame Rate: 50Hz
Pixel Interval: 17μm
Response Waveband: 8μm to 14μm
NETD: Less than 35 mK (@25°C,F#=1.1)
Focal Length: 6.2mm
IFOV: 2.74 mrad
Field Of View: 24.7° × 18.7° (H × V)
Aperture: F1.1
Magnification: 0.6 to 2.4
Monitor: 0.2 inch, LCOS, 720 × 540
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Digital Zoom: 1 ×, 2 ×, 4 ×
Smart Function
Hot Track: Yes
System Function
Storage: Built-in memory module (8 GB)
Record Video: On-board video recording
Capture Snapshot: On-board image capturing
Wi-Fi: Yes
Standby Mode: Yes
Battery
Battery Type: Rechargeable Lithium Battery
Battery Operating Time: 10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C) 7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)
Battery Capacity Display: Yes
General
Power: 5 VDC/2 A, 1.5 W, Type-C Interface
Work Temperature/Humidity: From -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less
Protection Level: IP67
Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Weight: 250 g (0.55 lb)
Wide Range Coverage
There is range limit for detecting, recognizing, and identifying human/vehicle targets.
Detection Range (Vehicles: 1.4 × 4.0 m): 559 m
Detection Range (Humans: 1.8 × 0.5 m): 182 m
Recognition Range (Vehicles: 1.4 × 4.0 m):140 m
Recognition Range (Humans: 1.8 × 0.5 m): 46 m
Identification Range (Vehicles: 1.4 × 4.0 m): 70 m
Identification Range (Humans: 1.8 × 0.5 m): 23 m
Levering
- HIKVISION Warmtebeeld DS-2TS01-06XF/W (Occasion)
- Kabel
- Beschermhoes
- Poetsdoek
