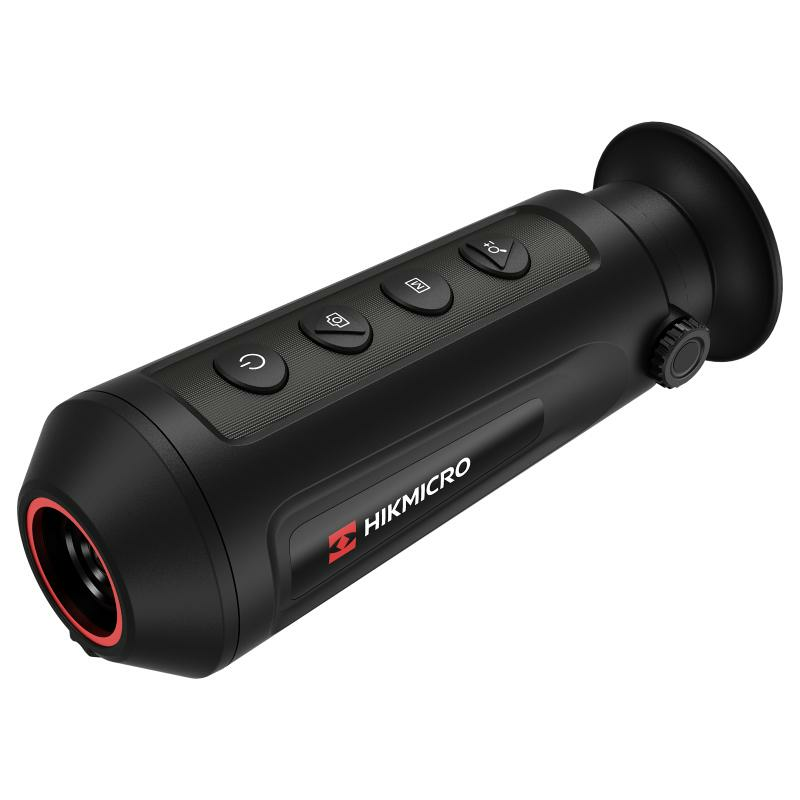

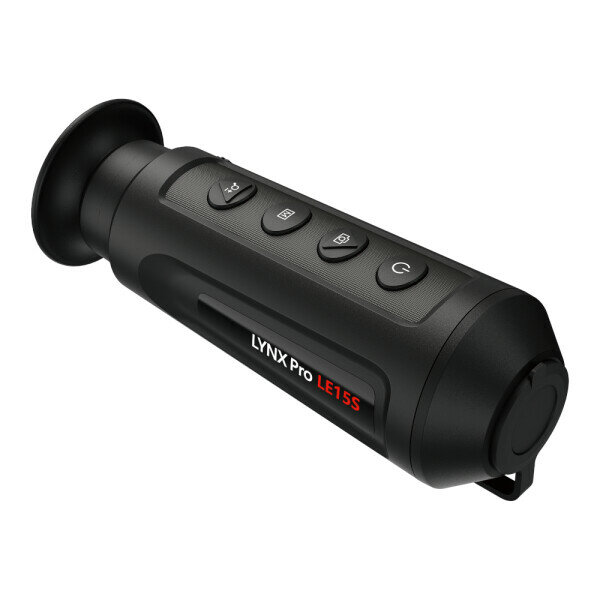

Hikmicro Lynx LE15 S Thermal Imaging Monocular
HIKMICRO LYNX S LE15S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching and rescuing, etc.
- 256 × 192 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- NETD less than 35 mK (@25°C, F# = 1.0)
- 800 × 600 resolution 0.32-inch OLED display
- Built-in rechargeable lithium battery
- Up to 8 hours continuous running
- Support hotspot
Large OLED Display for More Immersive Observation
High resolution 0.32” 800 x 600 OLED is capable of lower power consumption, wider viewing angle, and richer color.
High Frame Rate, Smoother Detailed Images
LYNX S series features filming at 50Hz. This refers to every image being enhanced with a higher dynamic range and effectively reducing eye strain when observing outdoors for a long time.

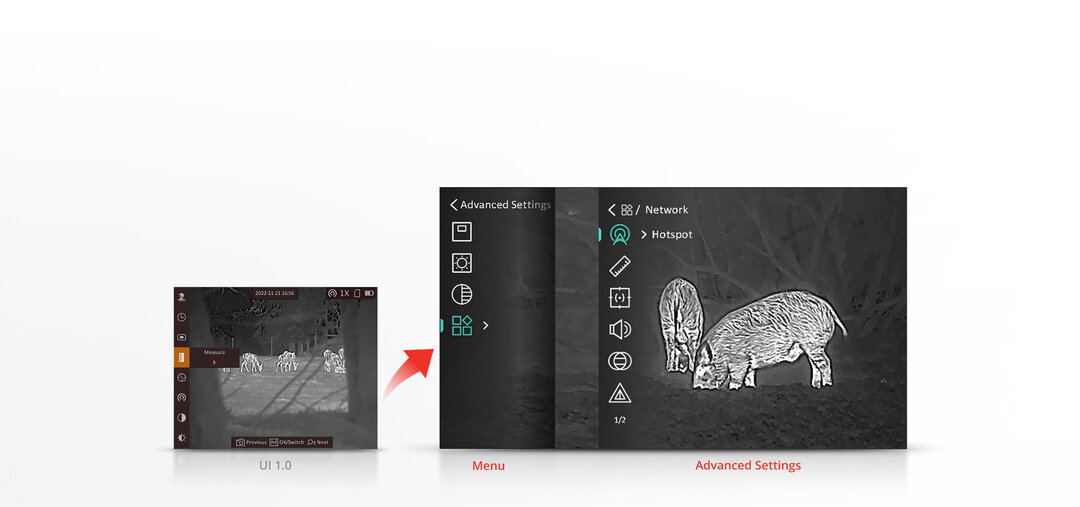

Convenient Brand New UI Design
The new UI design enhances the operation experience, quickly bringing up frequently used functions and not missing a single opportunity to spot your game.
Compact Size, Easy to Carry
Lightweight design of 280g/0.62 lb only.
Long Detection Range Breaks Through All Camouflage
With the advanced imaging detector and lens, the detection range of a 1.7 m target can reach up to 1200m.

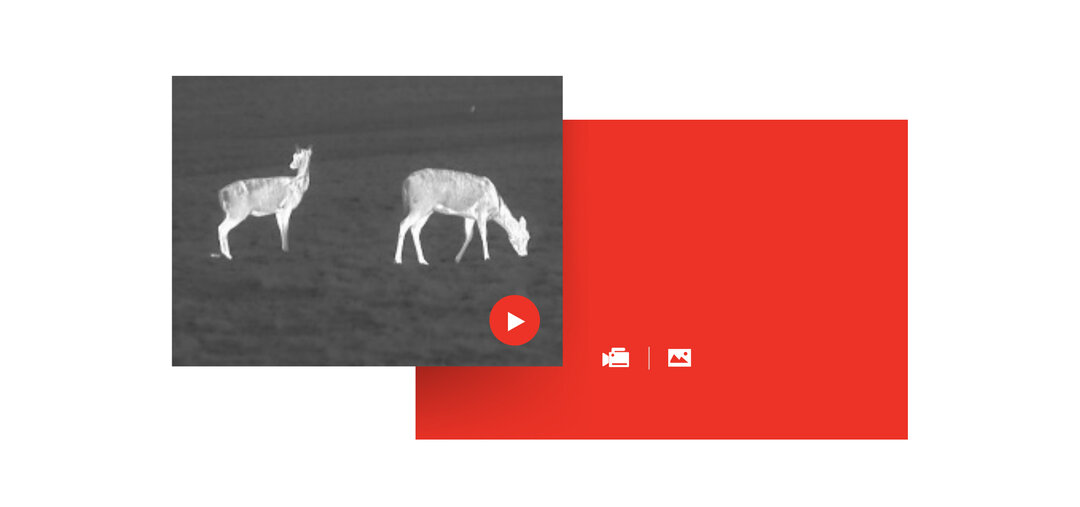

Video and Snapshot
Onboard 8 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to a PC via a USB Port.

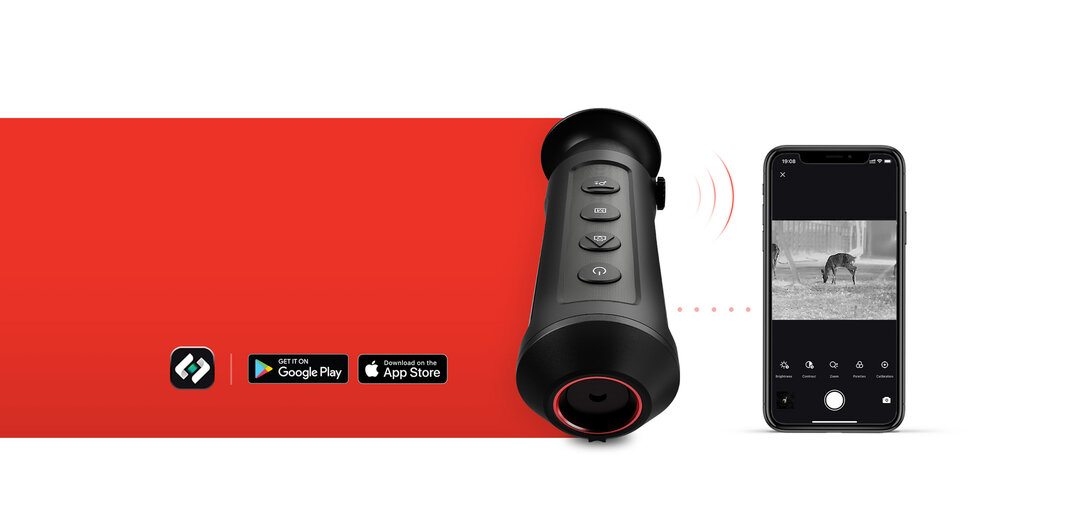

Hotspot for Mobile App
The integrated hotspot module makes the Sight app a second display. Users can use digital zoom, video recording and other features on their phones.
Specification
Thermal Module
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 256 x 192
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 35 mK (@25°C),F#=1.0
Lens (Focal Length): 15mm, f1.0
Detection Range: 750 m
Focus Mode: Focus Free

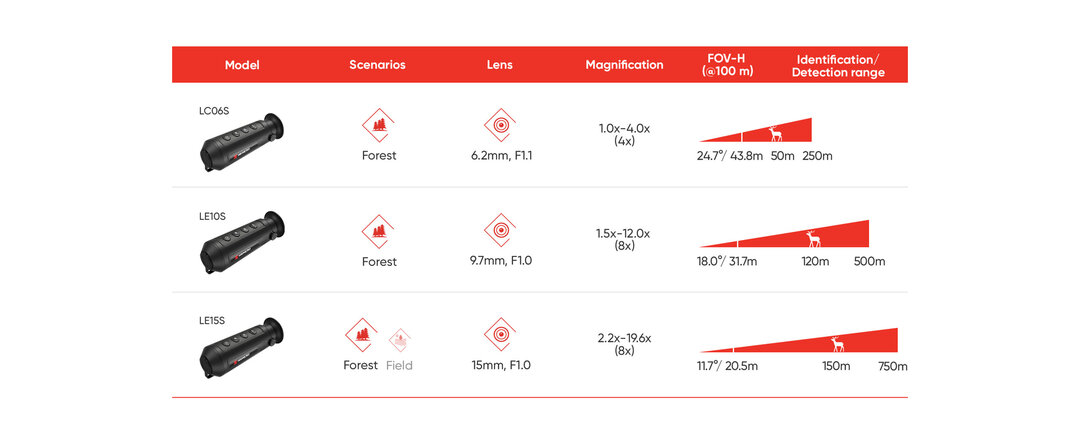

Field of View(H × V), Degrees / m @100m: 11.7° × 8.8° / 20.5 m × 15.4 m
Min. Focusing Distance: 10m
Magnification: 2.2x-17.6x(8x)
Image Display
Display: 800 × 600, 0.32 inch, OLED
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Palettes: Black hot, white hot, red hot, fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 20mm
Eye Relief: 6mm
Diopter (Range): ï¹£5D to +4D
Tone Adjustment: Cold, Warm
General
Protection Level: IP67
Weight: 280 g (0.62 lb)
Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Working Temperature: - 20 °C to 55 °C (- 4 °F to 131 °F)
System
Record Video: Yes
Capture Snapshot: Yes
Hotspot: Yes
Standby Mode: Yes
Storage: Built-in memory module (8 GB)
PIP: Yes
Hot Track: Yes
Distance Measurement: Yes
Audio Recording: Yes
Power Supply
Battery Type: Rechargeable Lithium Battery
Battery Operating Time: 8 hours continuous running with CVBS and hotspot off (@25°C), 6 hours continuous running with CVBS and hotspot on (@25°C)
Type-C Power Supply: 5V DC, 2 A Supports External Power Supply
What's in the box
- 1x Hikmicro Lynx LE15 S
- 1x Protective bag
- 1x Wrist strap
- 1x Start guide
- 1x Non-dust cloth
- 1x USB cable
