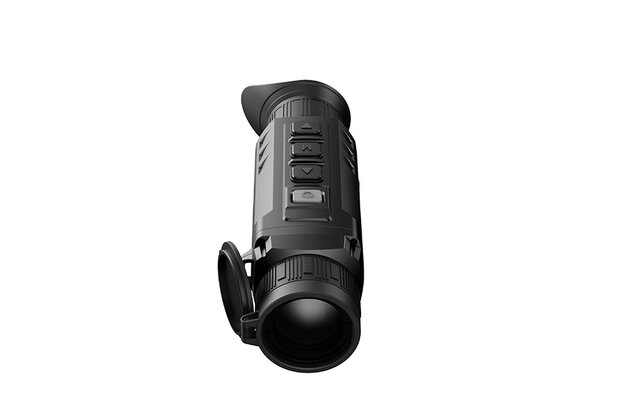

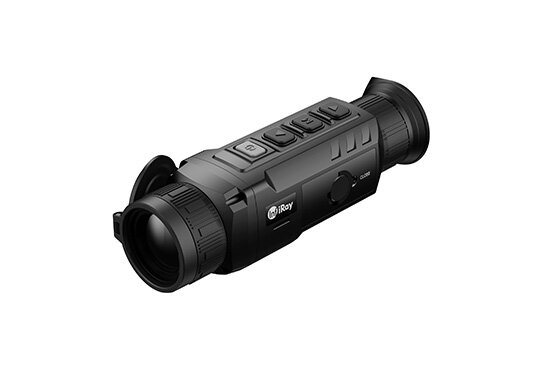

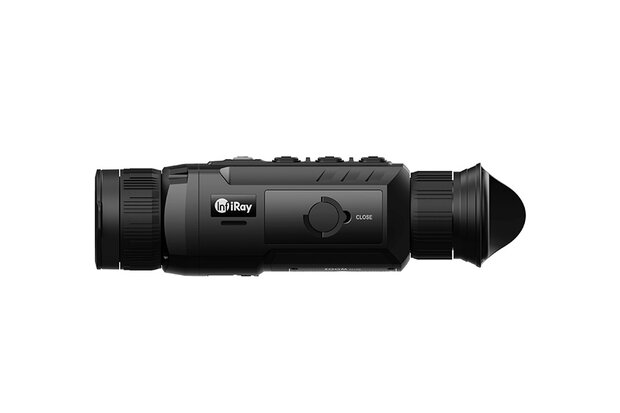

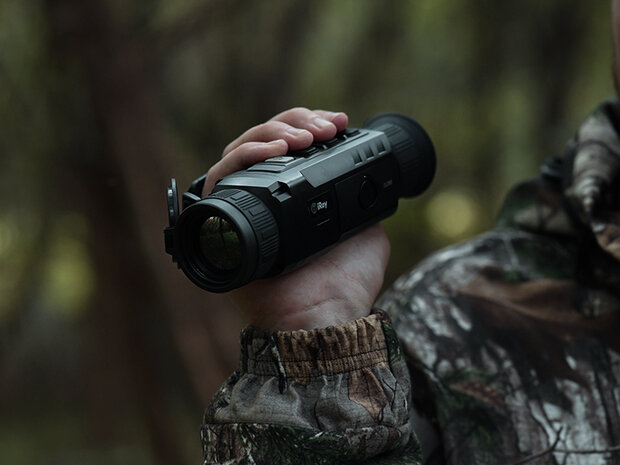

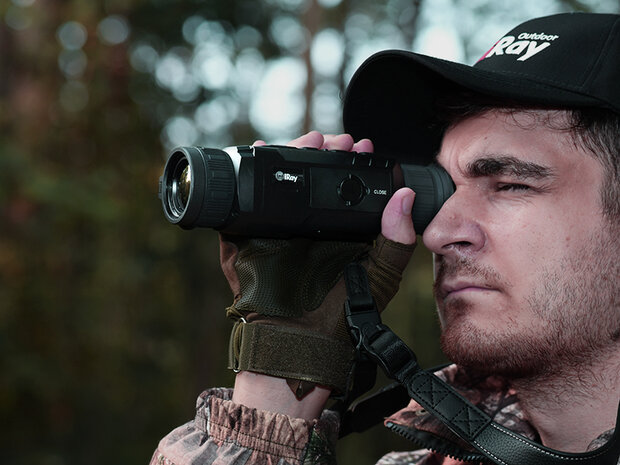

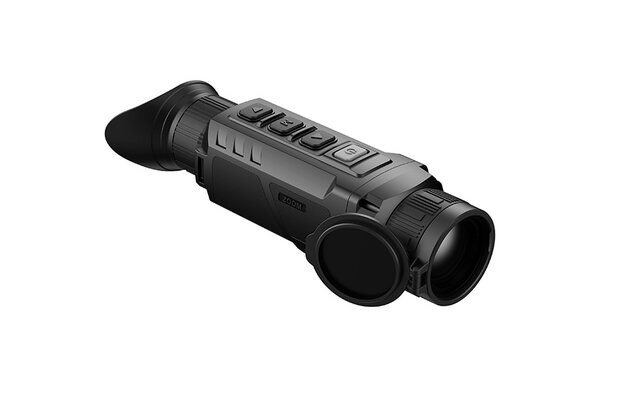

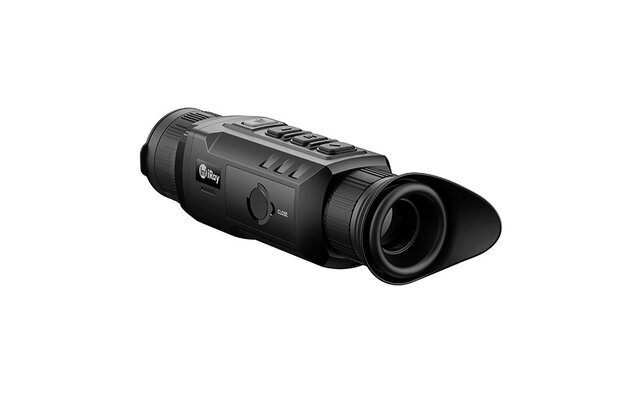

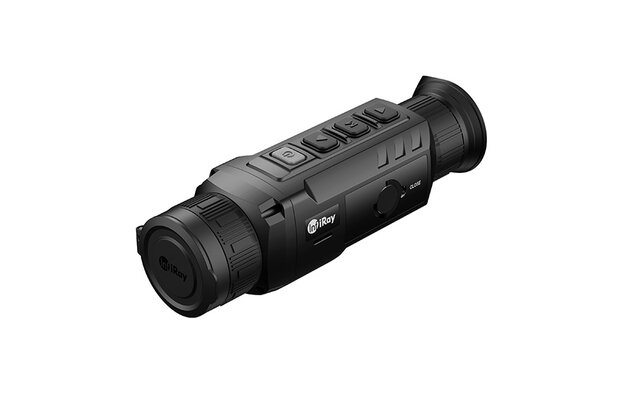

The ZH38 is a high-end thermal imaging monocular for outdoor. It has three “FIRSTS” in the industry, those are dual field of view (FOV), 1440×1080 high display resolution and shutterless technology. While maintaining the advantages of clear images, the ZH38 also has a variety of diversified color options, PIP, digital zoom, hot spot tracking, probability rangefinding and other functions. It could be extensively used for night hunting, observation and terrain positioning, search and rescue, etc.
Detection: 987 / 1974 meter

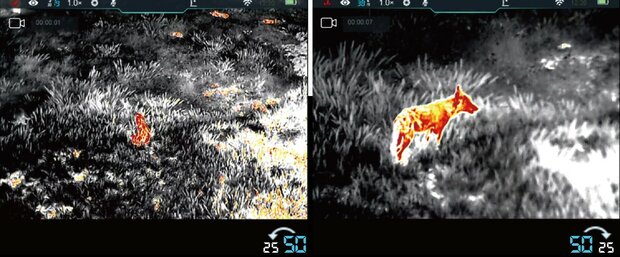

The First “FIRST” — Dual Field of View Design
The first breakthrough innovation is our “zoom as you wish” function. Using the unique dual FOV and 2× optical zoom, the user can quickly switch the dual FOV manually, a larger FOV with a focal length of 19mm is used for target search while a smaller FOV with a focal length of 38mm for target identification. Meet the need to see far, accurately and clearly.
The Second “FIRST” —1440×1080 High Display Resolution
The ZH38 has a built-in full-color high-definition display with a resolution of up to 1440×1080, coupled with the 20 times magnification eyepiece, and supports ×1/×2/×3/×4 electronic zoom for clearer and more comfortable observation, which greatly improves the human eye observation experience.
Shutterless Technology
The Shutterless core module is adopted to nullify the shutter calibration, simplify the operation, and lower the energy consumption, making the imaging quieter and linear.
High Image Quality with NETD ≤25mK
The imaging effect of ZOOM series can withstand the test as always, ZH38 is equipped with uncooled Vox 12μm 640×512 high resolution sensor featuring NETD ≤25mk (25 °C, F#=1.0). And with ultra clear function, your adventures will never again be stopped by even the worst weather conditions. Better image quality is provided with the powerful sensor and image algorithms, which will bring you a different clear outdoor experience.

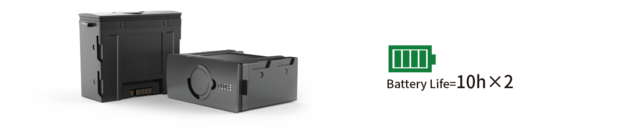

10 hrs × 2 batteries

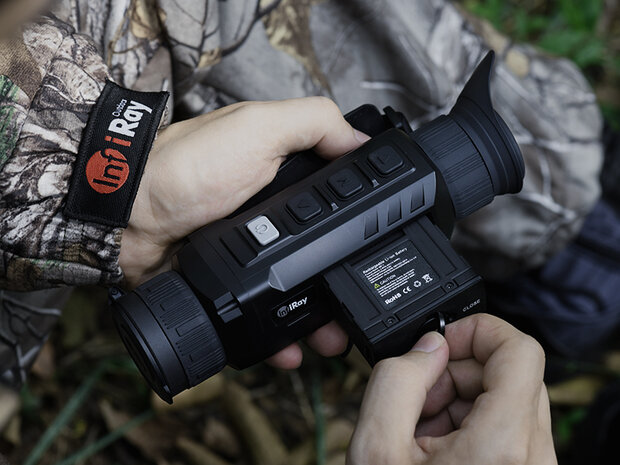

Using low-power components, lower power consumption, with a standard additional battery pack and a replaceable 4400mAh large-capacity lithium battery pack, battery life up to 20 hours.
32GB Storage & WiFi Connection
ZH50 is built with memory of 32GB which can support to store video and pictures. Built-in WiFi module supports APP connection and media transmission.

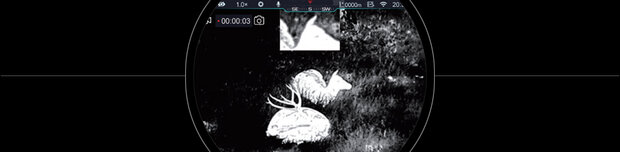

PIP Function
Built-in Picture-in-Picture function of ZH38 improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps users to zoom in on the targets while retaining the rest of the field of view visible.

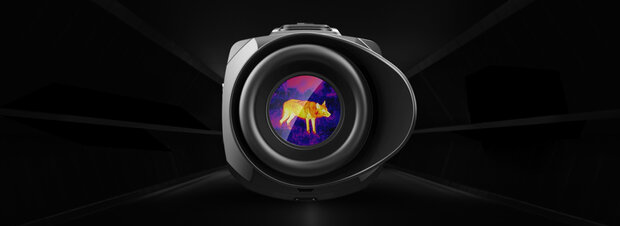

5 Color Palettes

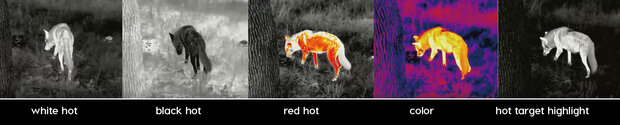

For different hunting environments and personal habits, ZH50 provides more than 5 color palettes, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.
| Detector Resolution |
640×512 |
| Pixel Pitch, μm |
12 |
| NETD, mK |
≤ 25 |
| Frame Rate, Hz |
50 |
| Objective Lens, mm |
19/38 |
| Magnification, × |
1.6 ~ 12.8 |
| Digital Zoom |
1×/2×/3×/4× |
| Eye Relief, mm |
20 |
| Distance |
987/1974 |
| Exit Pupil Diameter, mm |
5.5 |
| Display Resolution |
1440×1080 FHD OLED |
| Display Size, inch |
0.4 |
| Battery |
Lithium-ion battery pack IBP-1/4400mAh/DC3.7V |
| Max. Battery Life, h |
10 hours × 2 batteries |
| Amount of built-in memory, GB |
32 |
| Operating temperature, ℃ |
-20 ~ +50 |
| Weight, g |
580 |
| Dimension, mm |
190×65×60 |
Detection: 987 / 1974 meter
Package Contents
- ZOOM Series Thermal Imaging Monocular
- Portable bag
- IBP-1 Battery Pack × 2
- IBC-1 battery charger for Battery Pack
- Power adapter
- Data cable
- Neck Strap
- Wrist strap
- Lens cleaning cloth
- Quick Start Guide
