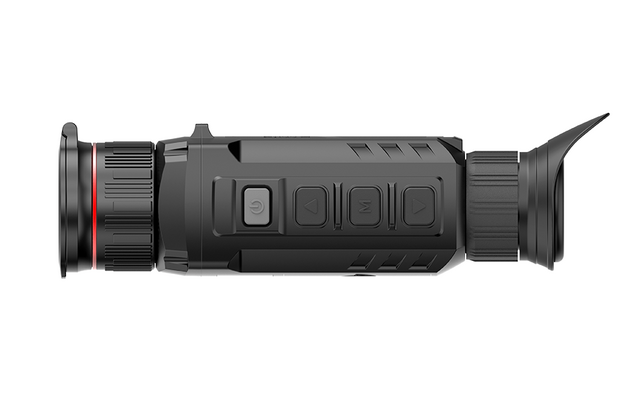

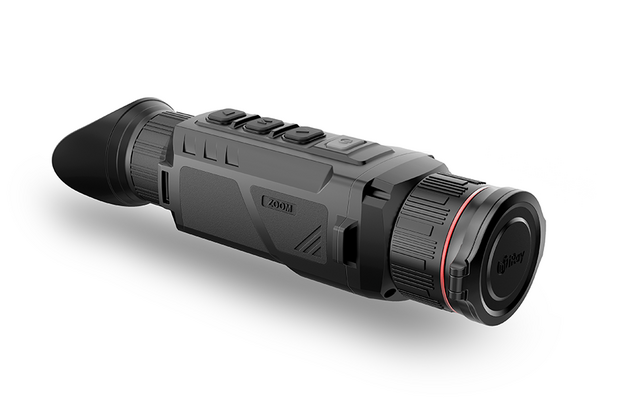

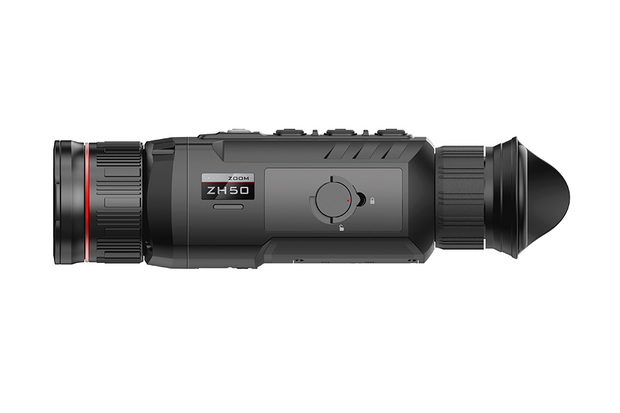

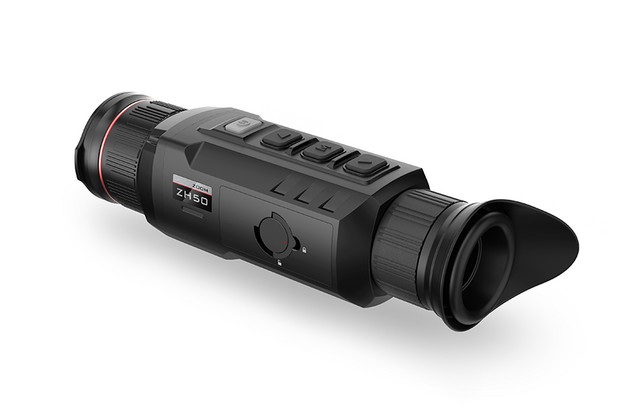

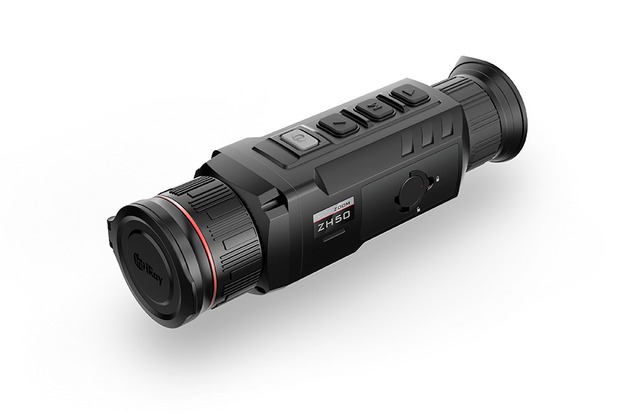

Zoom ZH50 is a high-end thermal imaging monocular for outdoor. It has greater magnification and keeps three unique technologies of ZOOM series: Dual Field of View, 1440×1080 HD Resolution and Shutterless Calibration Technology.
With the ZOOM's patented dual-field-of-view design, observers can seamlessly switch between a wide field-of-view (FOV) for detection, and a narrow FOV for target identification. It could be extensively used for night hunting, observation and terrain positioning, search, rescue, and more.
Detection: 1298 / 2596 meter

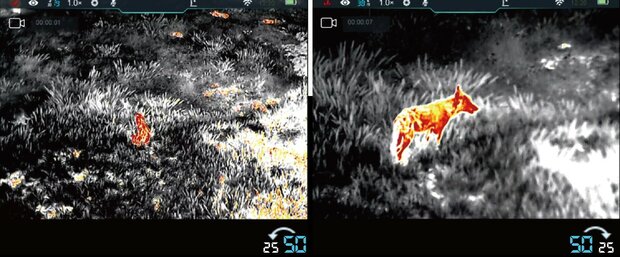

Dual Field of View Design
The wider FOV with a focal length of 25mm can be used for target search while the narrower FOV with a focal length of 50mm can be used for target identification.
The detection distance can reach up to 2.6km. With F-number 0.88/1.1, imaging clarity can be lifted to a new level.

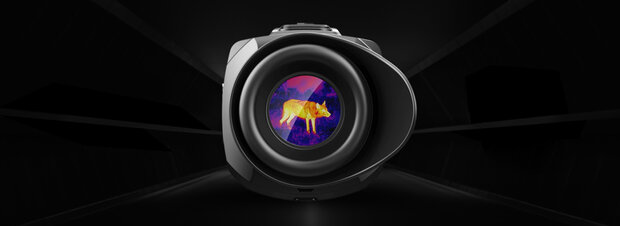

1440×1080 FHD OLED Display
Using 1440×1080 FHD OLED display, the observation effect is more excellent. And the 20×magnification eyepiece makes the target search more accurate and the observation distance is longer.
Shutterless Technology
The shutterless core module is adopted to nullify the shutter calibration, simplify the operation.
12µm Thermal Imaging Sensor with NETD ≤25mK
ZH50 is equipped with uncooled VOx 12um 640×512 high resolution sensor featuring NETD ≤25mk (25°C, F#=1.0). With the powerful sensor and image algorithm, better image quality is provided. Even in heavy fog and rain, the built-in ultra clear mode can also result in clear imaging through a more detailed field of view and enhanced object identification capabilities.

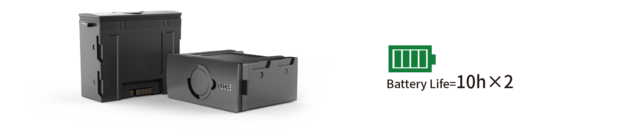

10 hrs × 2 batteries
Using low-power components, lower power consumption, with a standard additional battery pack and a replaceable 4400mAh large-capacity lithium battery pack, battery life up to 20 hours.
32GB Storage & WiFi Connection
ZH50 is built with memory of 32GB which can support to store video and pictures. Built-in WiFi module supports APP connection and media transmission.

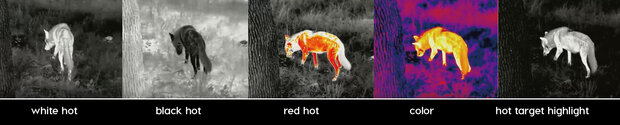

5 Color Palettes
For different hunting environments and personal habits, ZH50 provides more than 5 color palettes, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.
| Type |
Uncooled Vox |
| Resolution |
640×512 |
| Pixel |
12μm |
| NETD |
≤25mK |
| Frame Rate |
50hz |
| Objective Focal Length |
25/50mm |
| F-number |
0.88/1.1 |
| Magnification |
2.2x ~ 17.6x |
| Digital Zoom |
1x/2x/3x/4x |
| Exit Pupil Distance |
20mm |
| Exit Pupil Diameter |
5.5mm |
| Diopter |
-5 ~ +5 |
| Type |
AMOLED |
| Resolution |
1440×1080 |
| Dimension |
0.4" |
| Type |
Lithium-ion |
| Capacity |
4400mAh |
| Service Voltage |
3V~4.2V |
| External Voltage |
5V (Type C USB) |
| Operating Time |
10h |
| Internal Storage |
32GB |
| Operating Temperature |
-20℃~+50℃ |
| Weight |
650g |
| Dimension |
195×65×60 (mm) |
Detection: 1298 / 2596 meter
Package Contents
- ZOOM Series Thermal Imaging Monocular
- Portable bag
- IBP-1 Battery Pack × 2
- IBC-1 battery charger for Battery Pack
- Power adapter
- Data cable
- Neck Strap
- Wrist strap
- Lens cleaning cloth
- Quick Start Guide
