The Liemke Keiler 36 Pro thermal imaging camera has a range of 1,235 meters. A sensor, 50 Hz, and a 36 mm lens with 12 µm resolution deliver impressive images!

Application: Nature / Security / Maritime
Detection range: 1,235 m

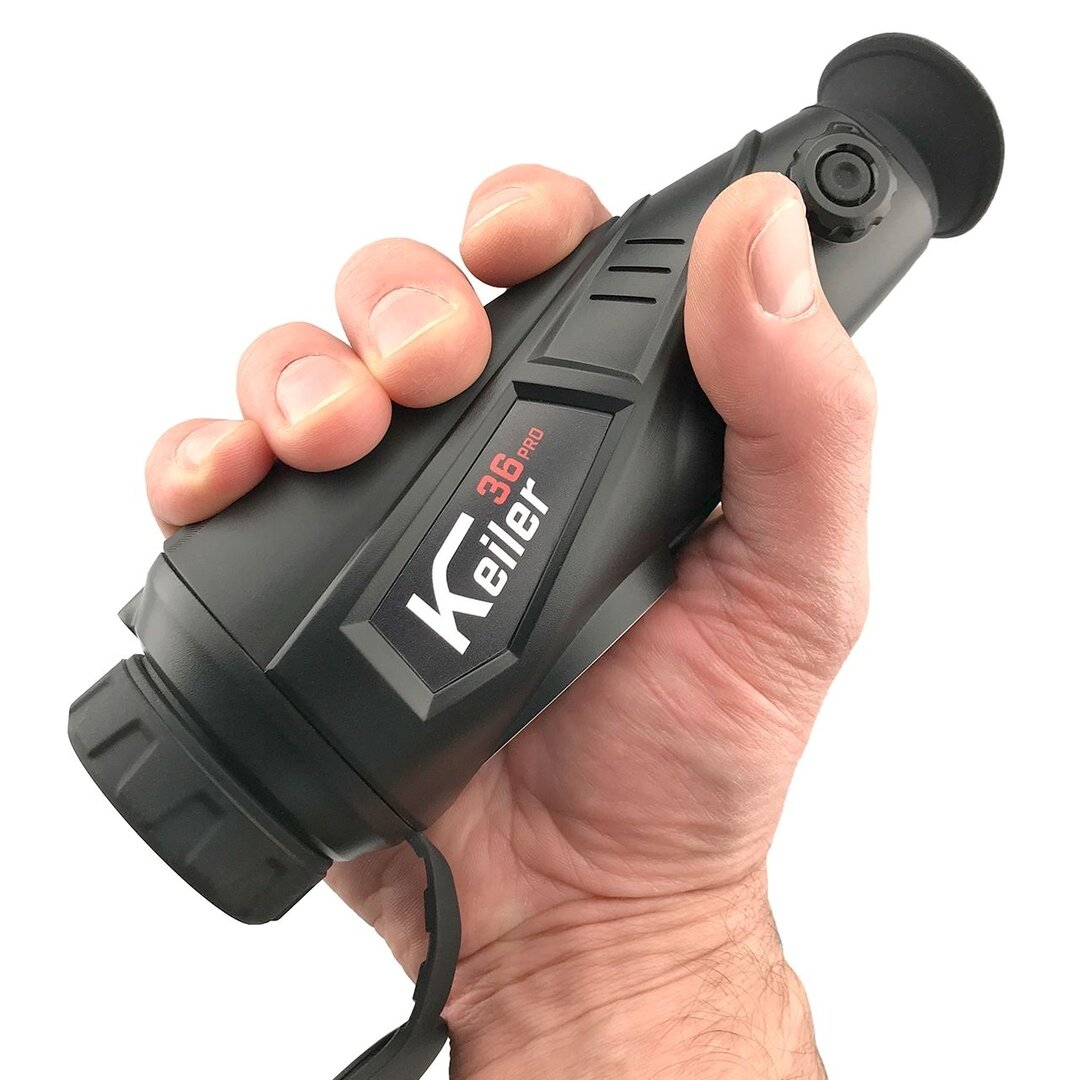

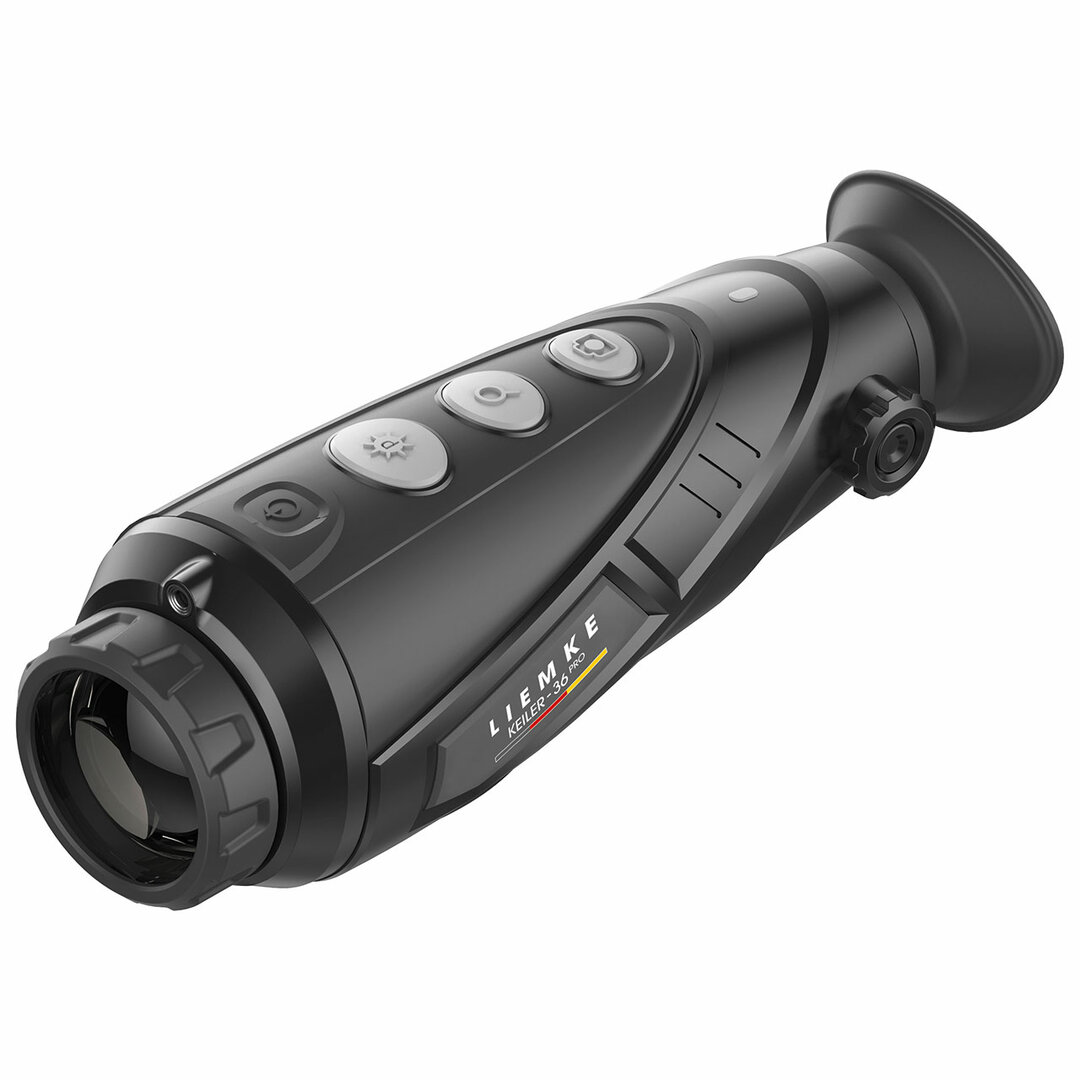

KEILER-36 PRO (2020)
The brand-new KEILER-36 Pro (2020) thermal optic with a 640x480 detector and 1,280x960 QVGA display is a compact powerhouse in pocket format.

The powerful new 12µm VOx detector and the new LCOS display in QVGA format provide fascinating image sharpness and viewing experience. The new 12µm detector also significantly improves battery life. The 35mm manually focusable lens allows detection up to 1,235 m and a field of view width of 22 m at 100 m distance. Heat sources can be displayed in various color modes and digitally zoomed up to 4x. Image data can be transferred via cable or live-streamed and recorded via WiFi up to 50 m to an Android or iOS device. The optic is IP66 certified, offering protection against dust and heavy rain. The KEILER-36 Pro (2020) is an ideal optic for passionate stalkers who do not want to sacrifice image sharpness even in zoom mode. The newly user-focused menu system of the 2020 version makes operation much more intuitive and faster.

Technical specifications
Objective lens (mm): 35
Detector material: VOx
Detector resolution (pixels): 640x480
Shutter / Calibration: automatic / manual
Display resolution (pixels): 1,280x960
Optical magnification: 2.5x
Focus: manual
Digital zoom: 2x / 4x
Field of view: 12x9°
Field width at 100 m: 22 m
Pixel FOV (mRad): 0.34
Weight: 450 g
Image/video storage (internal): yes
Wi-Fi live: yes
Pitch: 12 µm
Detection (m): 1,235

Scope of delivery

• Keiler-36 PRO (2020) optic

• Quick start guide

• Charging cable and USB charger

• Carrying pouch
