PULSAR Proton FXQ30 Warmtebeeld Voorzetkijker

Warmtebeeld Voorzetkijker



Standaard levertijd

Leverbaar vanaf juni / juli

€ 2.790,00
Prijs per stuk



PULSAR Proton FXQ30 Warmtebeeld Voorzetkijker

Zodra de zon ondergaat is het tijd voor de Pulsar Proton FXQ30. Met deze compacte thermische voorzetkijker transformeer je  je richtkijker tot een thermische kijker.

Lichtgewicht en compact:
Als je op jacht bent, telt elke gram. De compacte Proton FXQ30 neem je zó mee en dankzij het lage gewicht van slechts 380gram wordt ook de balans van het geweer en richtkijker zoals je die je gewend bent nauwelijks beïnvloed.

Proton FXQ30-bevestiging
Proton FXQ30 wordt aan de richtkijker bevestigd met behulp van de PSP-adapter (Precise Screen Positioning) van Pulsar. Nadat je de Proton voor de eerste keer heeft gemonteerd en afgesteld, hoeft je deze niet opnieuw af te stellen. De PSP-adapter maakt een extreem snelle montage van Proton op en van de richtkijker mogelijk, terwijl het nauwkeurige schermpositioneringsmechanisme ervoor zorgt dat het display met warmtebeeld gecentreerd is binnen het gezichtsveld van de

De Proton FXQ30 werkt het best in combinatie met een richtkijker waarmee een vergroting tussen 1,5 en 4x mogelijk is. Met de apart verkrijgbare PSP-adapter (3 maten) kun je de Proton FXQ aan richtkijkers met een lensdiameter van 40mm t/m 56mm bevestigen. Dit betekent dat je de Proton kunt gebruiken met de meest populaire richtkijkers zoals de 1,5– 6x42, 2–8x42, 3–9x40, 2–12x50 en 3–12x56.

De Proton FXQ omtoveren tot een thermische monoculair?
Dit kan snel en eenvoudig door het Pulsar 5x30 B monoculair te monteren. Hierbij kan de PSP-adapter eventueel op de Proton gelaten worden zodat deze weer snel op de richtkijker geplaatst kan worden.

Eenvoudig te gebruiken:
Dankzij het moderne athermische objectief lens hoeft je de Proton niet scherp te stellen. Zowel het doel als de achtergrond zullen tot op 15 meter afstand scherp in beeld zijn. Alle bedieningsknoppen zijn binnen handbereik op dit compacte apparaat maar met behulp van de optionele afstandsbediening kun je de Proton ook op afstand bedienen. Deze kun je bijvoorbeeld aan de geweerkolf bevestigen zodat het nog eenvoudiger wordt om de Proton te bedienen.

Premium functionaliteit:
Ondanks zijn kleine formaat herbergt de Proton FXQ30 eersteklas componenten en toepassingsmogelijkheden.
  • Zeer gevoelige 384x288 px @ 17μ sensor, NETD <40 mK
  • Schokbestendige behuizing van magnesiumlegering, IPX7 waterdicht
  • Terugslagklasse tot .375 H&H, 12-gauge en 9.3x64
  • Geïntegreerde foto- en videorecorder met 16 GB intern geheugen
  • HD AMOLED-scherm
  • 8 kleurenpallets
  • Wifi integratie met iOS- en Android-apparaten ( Stream Vision App)
  • Proton FXQ30 incl. Accu: afm. 119x58x75 / gewicht 380gr
Featuring highly sensitive thermal imaging detector with <40 mK NETD and HD AMOLED micro display PROTON FXQ30 offers image of exceptional quality with high contrast and rich detail. While having compact size and small weight the attachment provides long operation time and numerous useful features thanks to the use of innovative APS5 battery system and new image processing electronics.

Sensor: 384x288 pix. @ 17 µm (NETD <40 mK)
Objective lens: F30/1.2
Detection range, m: 900

Type: VOx, uncooled
Resolution, pixels: 384x288
Pixel pitch, µm: 17
NETD, mK: <40
Frame rate, Hz: 50

Objective lens: F30/1.2
Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.3
Recommended magnification of the day sight, x: 1.5 − 4

Resolution, pixels: 1024x768

Range Performance
Detection range, m: 900

Video Recorder
Video / photo resolution, pixel: 864х648
Video / photo format: mp4 / .jpg
Built-in memory, Gb: 16

Power Supply
Output voltage, V: 3.0 - 4.2
Battery type: Li-Ion Battery Pack APS 5
Capacity, mAh: 4900 mAh
External power supply, V: 5 (USB Type C)

Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules: 6000
Shock resistance on the smooth-bore rifles, caliber: 12

Frequency, GHz: 2.4 GHz
Standard: 802,11 b/g
Line-of-sight reception range, m: 15

Weight & Size
Dimensions, mm: 119х58х75
Body material: Magnesium alloy
Weight, kg: 0.37 (with APS5 battery)

Trade Data
SKU (Model #): 76653

Light-weight and compact size

Small weight is important when attachment is mounted on the rifle and ads to total weight of assembly. Compact size makes handling and storage of the unit more convenient.

Highly sensitive thermal imaging sensor

Thermal imaging sensor with NETD 40mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imager.

Shockproof magnesium alloy housing

Rugged and light-weight magnesium alloy housing is designed to withstand recoils of high caliber rifles. Increased structural rigidity reduces vibrations during the shot and leads to enhanced ballistics while properties of magnesium alloy help to ensure better heat dissipation.

Quick-release adapter with precise screen positioning mechanism in the field of view of day optics

The attachment docks with front quick-release PSP adaptor mount and can be easily put on the riflescope and taken off. The mount allows to perform precise alignment of attachment’s field of view with central point of riflescope’s field of view in order to achieve the optimal viewing position.

Point-of-Impact Stability

Proton allows shooters to focus on quick target acquisition and shot placement in low-light environments without stressful, complex adjustments by utilizing a sequential layout of optical and electronic components designed to provide precise sight alignment and ultra-easy adjustability. Attachment’s design ensures stability of the point-of-impact when re-focusing the attachment at various distances.

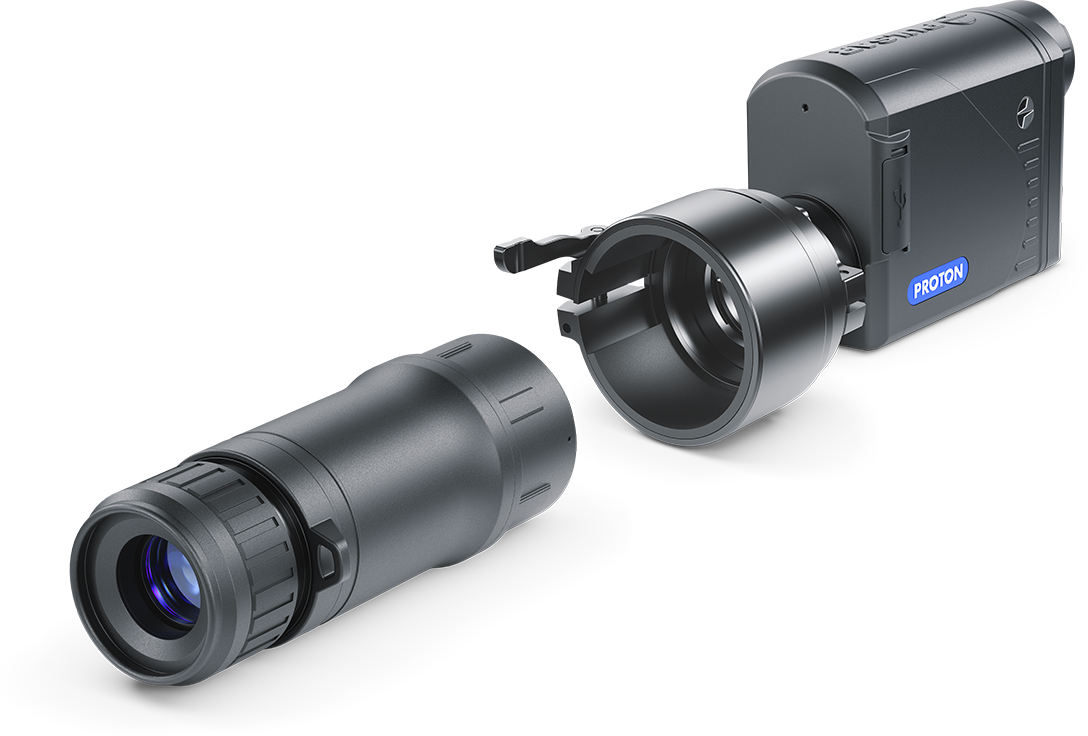

Easy transformation into observation scope

Several seconds and 5x30B Pulsar monocular - all that is needed to take Proton FXQ off the riflescope and turn it into a thermal imaging spotter with 5x magnification. 5x30B monocular can be easily connected with Proton by means of bayonet connector. PSP adaptor used for mounting Proton on day optics can remain attached to Proton when paired with Pulsar 5x30 monocular. In the field it ensures fast and easy transformation of Proton FXQ30 from attachment into spotter and back.

Recoil Rated up to .375 H&H, 12-Gauge and 9.3x64

Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375 H&H, 12-gauge and 9.3x64.

Image Detail Boost Function

Pulsar’s proprietary Image Boost Technology is comprised of software algorithms designed to increase imaging clarity and overall image detail. Image Boost results in a sharper, more detailed field of view and enhanced object identification capabilities.

Built-in photo and video recorder with 16 GB memory

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 Gb of internal memory provide many hours of recorded video and tons of photos. Recorded files can be later downloaded to PC or smartphone.

High Contrast AMOLED Display

High quality display delivers crisp, richly contrasted, vivid field of view, AMOLED technology ensures flawless, fluid, high-resolution imaging and power saving.

Wi-Fi. Integration with IOS and Android devices

Built in Wi-Fi module provides connectivity of Proton FXQ30 attachment with Android or iOS smartphones and tablets with the help of free Stream Vision application. In combination with smartphone, thermal imager offers a set of unique features such as live image streaming to smartphone, transfer and sharing of multimedia files, firmware update, remote control of unit’s settings and many other.

8 Color Palettes

The 8-color palette enhances viewing in varying conditions. While the classic White Hot mode is exceptionally versatile, Hot Black is often favored for detecting wildlife at night. Red Monochrome helps to reduce or prevent bright backlight from exiting the eyepiece. Sepia often improves long-range observation while Red Hot, Rainbow and Ultramarine enhance temperature differences of various object attributes. Violet helps to identify objects faster.


More features

Quick-change APS 5 battery system

Quick-change high capacity rechargeable Li-Ion battery offers up to 6 hours of operation time on single charge. Fast and easy battery replacement ensures continuous observation without disruptions. Ordinary power bank connected via USB Type-C socket can be used as an external power source.

Wireless remote control

The ergonomic Pulsar BT wireless remote control with encoder wheel puts the full range of Proton FXQ operation at your fingertips when comfort and convenience means taking hands-off the controls.

Wide range of operating temperatures (-25 to +50°C)

Housing, power unit, optics and electronics of Proton FXQ30 are designed with regard to applications in wide range of temperatures. Proton FXQ ensures reliable and effective performance in freezing cold up to -25°C.

IPX7 Fully Waterproof

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
