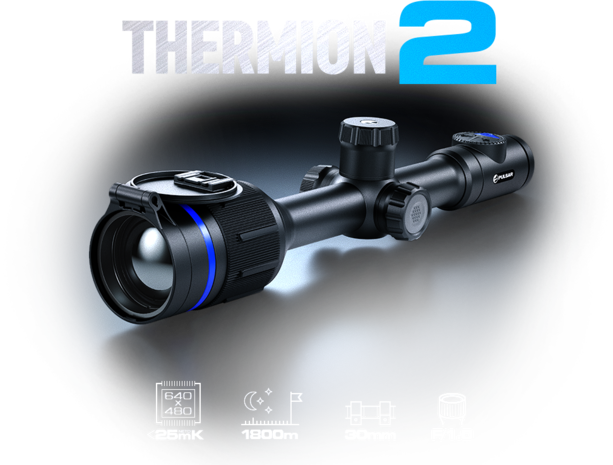

PULSAR THERMION 2 XQ50 Warmtebeeld Richtkijker met 3 jaar Garantie
Main
Sensor: 384x288 pix. @ 17 µm (NETD <25 mK)
Objective lens: F50/1.0
Magnification, x: 3.5 – 14 (x4 zoom)
Field of view (HxV), degrees / m@100m: 7.5x5.6 / 13.1x9.8
Detection range, m: 1800
Sensor
Type: uncooled
Resolution, pixels: 384x288
Pixel pitch, µm: 12
NETD, mK: <25
Frame rate, Hz: 50
Optics
Objective lens: F50/1.0
Magnification, x: 3.5 – 14
Field of view (HxV), degrees / m @ 100 m: 7.5x5.6 / 13x9.8
Eye relief, mm: 50
Display
Type: AMOLED HD
Resolution, pixels: 1024x768
Range Performance
Detection range, m: 1800
Reticle
Click value, H/V, mm at 100 m: 18 / 18 (от minimum magnification)
Click range, H/V, mm at 100 m: 3600 / 3600
Number of preloaded reticles:10+
Video Recorder
Video / photo resolution, pixel: 1024x768
Video / photo format: .mp4 / .jpg
Built-in memory, Gb: 16
Environmental Characteristics
Degree of protection, IP code (IEC60529): IPÐ¥7 (waterproof)
Operating temperature range: -25 – +50
Weight & Size
Body material: Metal
Dimensions, mm: 412x78x83
Weight, kg: 0.9
Power Supply
Output voltage, V: 3.0 - 4.2

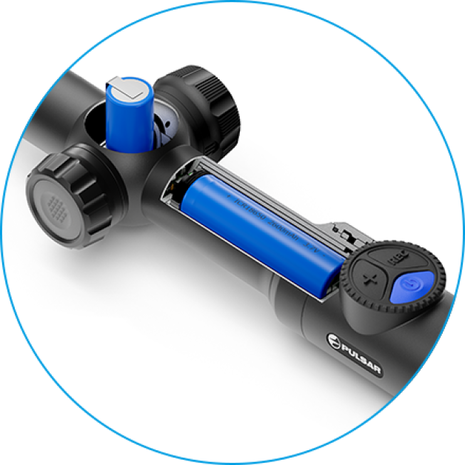

Battery type: Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 3.2 A·h Battery (internal)
Capacity, mAh: 2000 (external) + 3200 (internal)
Operating time on battery pack (at t=22°C), h *: 5 +
External power supply, V: 5 (Micro USB Type B)
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules: 6000
Shock resistance on the smooth-bore rifles, caliber: 12
Mounting brackets on weapon: Standard 30 mm rings
Wi-Fi
Frequency: 2.4GHz
Standard: 802,11b/g/n
Line-of-sight reception range, m: 15
Trade Data
SKU (Model #): 76545
Highly sensitive thermal imaging sensor
Thermal imaging sensor with NETD <25mK* ensures perfect detail recognition even in the harshest weather conditions with low thermal contrast. The smallest temperature differences will be clearly visible during rainfall, in fog or cold mornings in the most difficult conditions for thermal imaging.

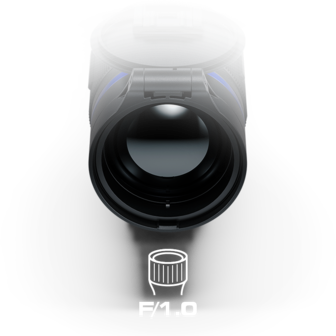

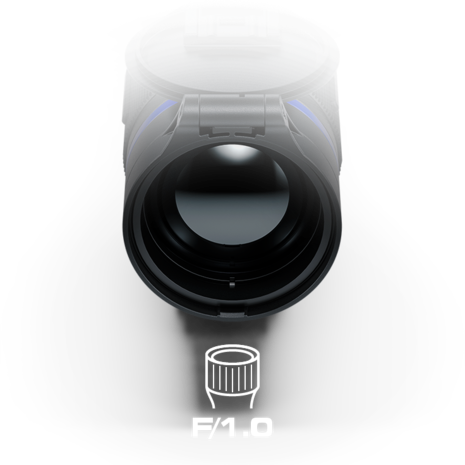

Fast Aperture F/1.0 Germanium Optics
Quality fast-aperture germanium optics ensure optimal heat energy transmissivity minimizing noise and improving the details of the scene observed.

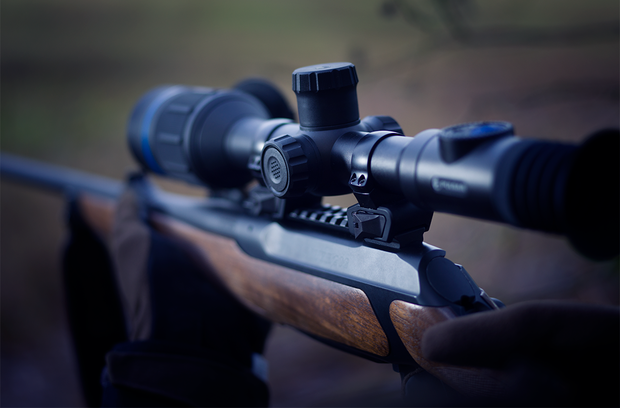

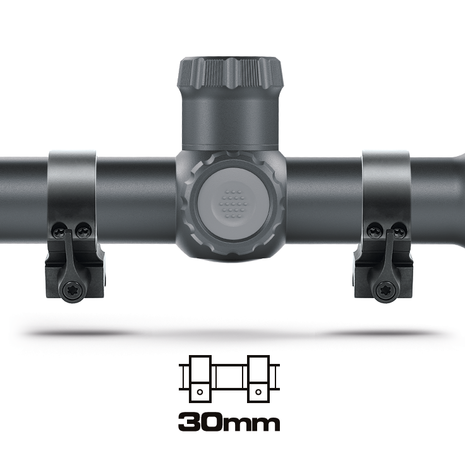

Mounts on Standard 30 mm Scope Rings
Designed from the ground up for ease of use, Thermion riflescopes are mounted on standard 30mm scope rings. No specialized tools or equipment are required.
Extreme Detection Range 1800 m (2,000 Yds)
High quality germanium optics coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 1800 meters – even in complete darkness.
Rugged and reliable
Recoil Rated up to .375 H&H, 12-Gauge and 9.3x64
Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375 H&H, 12-gauge and 9.3x64.
Rugged, Reliable All-Metal Housing
Designed for rugged reliability, Thermion riflescopes boast full, reinforced yet lightweight мetal construction. Precision-fabrication of housing elements ensures flawless field performance.

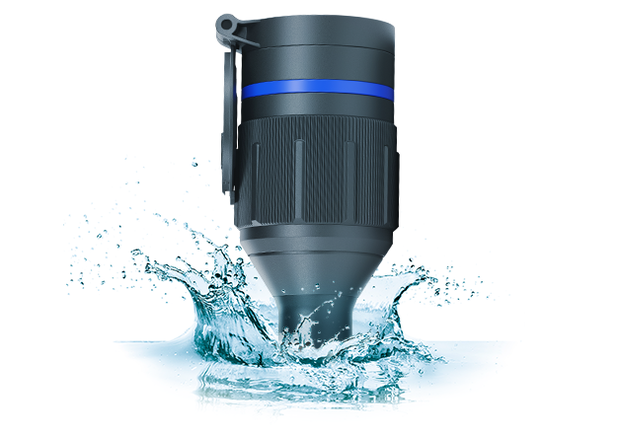

IPX7 Waterproof Rated
IPX7 waterproof rated for protection from heavy rainfall, snow or other precipitation. The Thermion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Clear on target!
Variable Digital Zoom
Digital zoom, up to 8x, provides improved focus and overall target recognition at significant distances.
Zeroing Profiles Management
Store up to 5 zeroing profiles, with 10 distance coordinates each for varying scenarios, in internal memory for quick rifle change-outs and on-the-fly adjustments.
Customizable Reticle Options
Wide array of color-customizable reticles, including scalable ballistic styles. Color options: black, white, red and green.

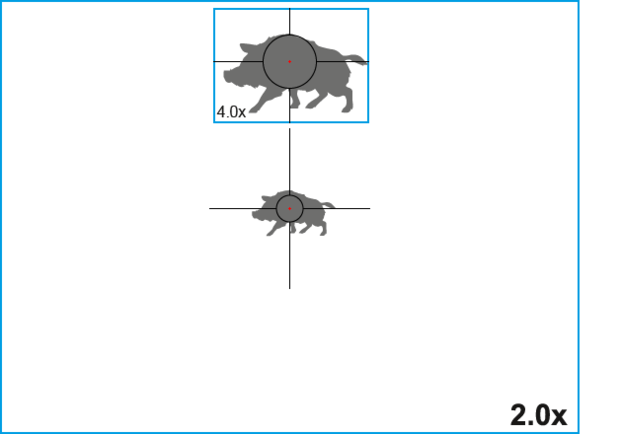

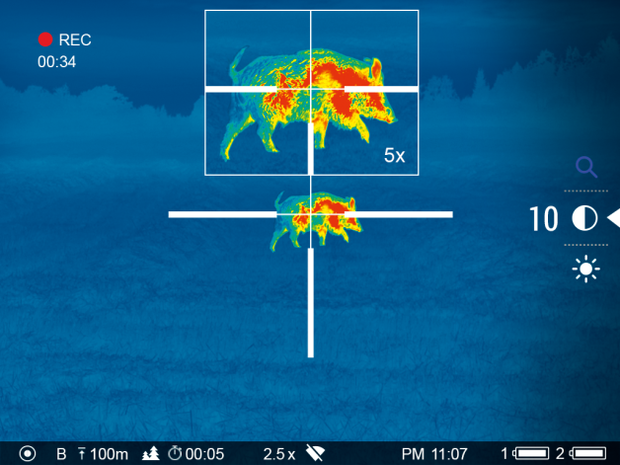

Picture-in-Picture
Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise shot placement.
Image. Quality

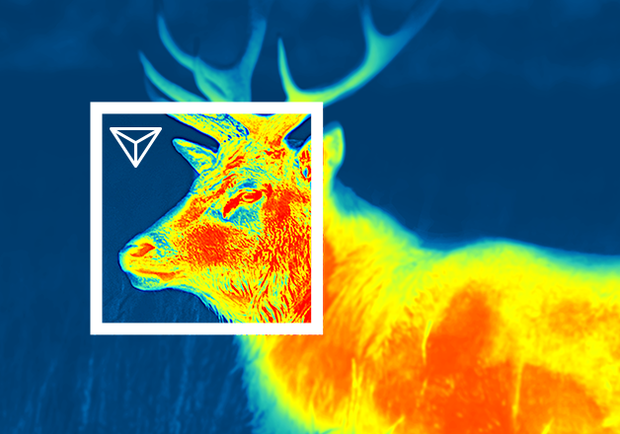

Image Boost Technology
Image Boost technology is a proprietary combination of software algorithms which enhance image clarity and overall image detail. Applying Image Boost makes for a sharper and more detailed picture enabling better object identification capabilities.
Full-Color, HD AMOLED Display
While the Thermion’s HD AMOLED display delivers crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid, high-resolution imaging and power saving.

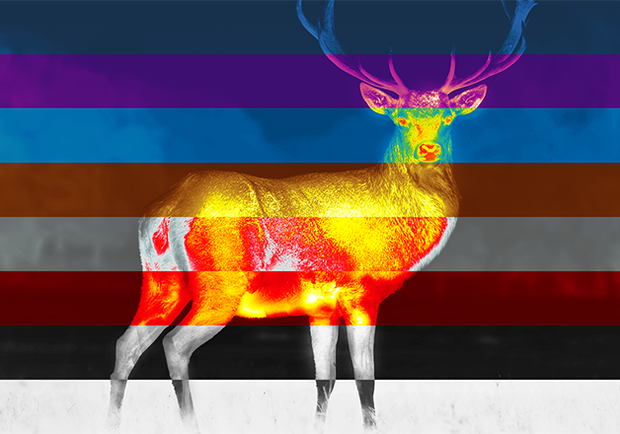

Color Palettes
Color palettes offer customized display options. While white hot and black hot are most popular, red hot, rainbow and ultramarine highlight a heat signature’s more intense hot spots. Violet, red monochrome and sepia are optimal palettes for reduced eye fatigue over long periods of observation.
Black Hot
White Hot
Red Hot
Ultramarine
Sepia
Red Monochrome
Rainbow
Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise shot placement.
Hulp nodig bij het inschieten van de Thermion?
Klik op de onderstaande link en/of bekijk het filmpje.
http://articles.pulsarnv.com/index.php/thermion-zero/
