PULSAR THERMION XQ38 Warmtebeeld Richtkijker heel netjes mee omgegaan, en compleet in de doos!
Main
Sensor: 384x288 pix. @ 17 µm
Objective lens: F38/1.2
Magnification, x: 2.5 - 10
Detection range, m: 1350
Sensor
Type: uncooled
Resolution, pixels: 384x288
Pixel pitch, µm: 17
Frame rate, Hz: 50
Optics
Objective lens: F38/1.2
Magnification, x: 2.5 - 10
Field of view (HxV), degrees / m @ 100 m: 9.8x7.4 / 17.2x12.9
Eye relief, mm: 50
Display
Type: AMOLED
Resolution, pixels: 1024x768
Range Performance
Detection range, m: 1350
Reticle
Click value, H/V, mm at 100 m: 17 / 17
Click range, H/V, mm at 100 m: 3400 / 3400
Number of preloaded reticles:10+
Video Recorder
Video / photo resolution, pixel: 1024x768
Video / photo format: .mp4 / .jpg
Built-in memory, Gb: 16
Environmental Characteristics
Degree of protection, IP code (IEC60529): IPÐ¥7
Operating temperature range: -25 – +50
Weight & Size
Dimensions, mm: 395x78x72
Weight, kg: 0.75
Power Supply
Output voltage, V: 3.0 - 4.2
Battery type: Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 3.2 A·h Battery (internal)
Capacity, mAh: 2000 (external) + 3200 (internal)
Operating time on battery pack (at t=22°C), h *: 7
External power supply: 5V
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules: 6000
Shock resistance on the smooth-bore rifles, caliber: 12
Mounting brackets on weapon: Standard 30 mm rings
Wi-Fi
Frequency: 2.4GHz
Standard: 802,11b/g/n
Line-of-sight reception range, m: 15
Trade Data
SKU (Model #): 76522
TRUE SUPERIORITY
Boasting state-of-the-art design and the latest in advanced technological innovations, the Pulsar Thermion delivers the premium thermal imaging you’ve come to expect, but on a traditional-style aircraft-grade 30 mm-tube. Thermion Thermal Riflescopes are available in flagship 640x480 microbolometer sensor resolution with a 17μ pixel pitch, and 320x240 microbolometer sensor resolution with 12μ pixel pitch. The cutting-edge thermal imaging riflescopes for professional hunters who value traditions and seek technological superiority.
Disclosure
The product availability on website is for marketing purpose only and does not guarantee/imply that the device is available in your country for use/sell/order/other purposes. These products require special license and even could be forbidden due to local legislation.
Extreme Detection Range 2300 meters
High quality germanium optics coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 2300 meters in, even in complete darkness.
A unique combination of state-of-the-art design and the latest technology in the field of thermal imaging.
Instant Start-up
Thanks to the new revolutionary electronics unit can be started almost instantly. Quick start-up helps to save energy and thus prolongs time of operation. The unit can be kept switched off and then rapidly activated when the right time comes.
Pulsar’s proprietary Image Boost Technology is comprised of software algorithms
designed to increase imaging clarity and overall image detail. Image Boost results in a sharper, more detailed field of view and enhanced object identifcation capabilities.
* available in the Thermion XP and XQ lines
Mounts on Standard 30 mm Scope Rings
Designed from the ground up for ease of use, Thermion riflescopes mount to standard 30mm scope rings. No specialized tools or equipment are required.
Recoil Rated up to .375 H&H, 12-Gauge and 9.3x64
Recoil rated up to 6,000 Joules for flawless performance on larger calibers up to .375 H&H, 12-gauge and 9.3x64.
Rugged, Reliable All-Metal Housing
Designed for rugged reliability, Thermion riflescopes boast full, reinforced yet lightweight metal construction. Precision-fabrication of housing elements ensures flawless field performance.
Video and Still-Photo Recording
Integrated video (including recoil-activated) and still image recording in MPEG-4 and .jpg makes sharing the thermal action quick and easy. The onboard 16-GB internal memory handles recoil flawlessly and stores hours of video or thousands of photos.
Stream Vision App Supported
Using Wi-Fi and the Stream Vision App, connect the Thermion to a smartphone or tablet for use as a second display or remote control. Also makes transferring recorded files, adjusting settings, upgrading firmware.

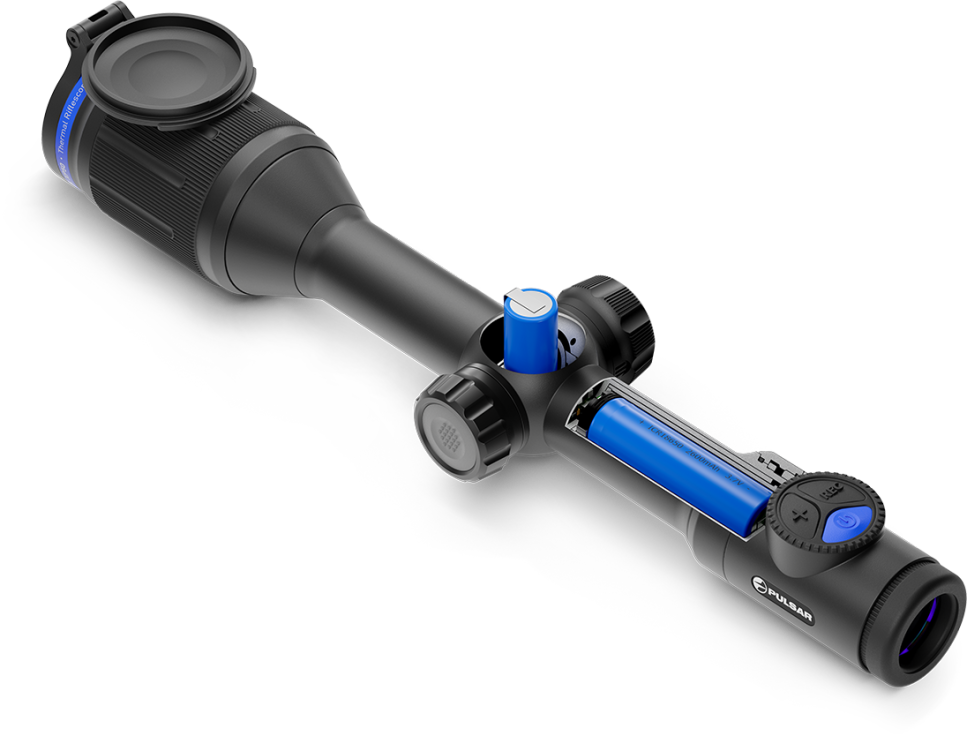

B-Pack Mini Combined Power System
Thermion riflescopes have dual battery system which consists of two batteries internal and external. External battery ensures additional operation time and can be replaced in a matter of seconds.
Color Palettes
Color palettes offer customized display options. While white hot and black hot are most popular, Red Hot, Rainbow and Ultramarine highlight a heat signature’s more intense hot spots. Violet, Red Monochrome and Sepia are optimal palettes for reduced eye fatigue over long periods of observation.
Black Hot

White Hot

Red Hot

Ultramarine

Sepia

Red Monochrome

Rainbow
More Features
Variable Digital Zoom
Digital zoom, up to 8x, provides improved focus and overall target recognition at significant distances.

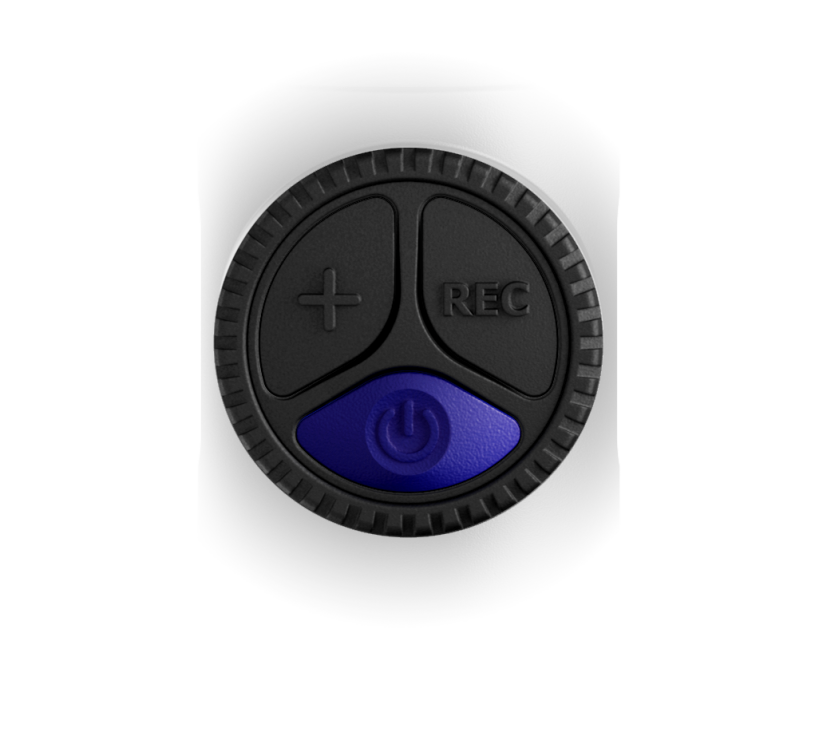

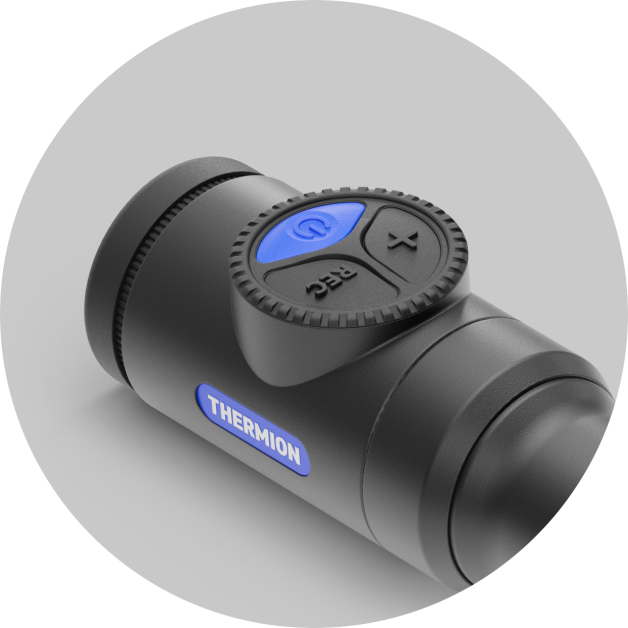

User Friendly Controls
Thermion operation and adjustments are simple using the 3 function buttons on the top of the device and left side encoder. The 3 buttons and encoder provide access and management of all device menu options, settings and system functions.
IPX7 Waterproof Rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Thermion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
High Definition Image
Sharp, richly contrasted thermal imaging for enhanced identification of animals, their extremities and even the smallest details, i.e. branches, leaves, grass and terrain.
Zeroing Profiles Management
Store up to 5 zeroing profiles, with 10 distance coordinates each for varying situations, in internal memory for quick rifle change-outs and on-the-fly adjustments.
Customizable Reticle Options
Wide array of color-customizable reticles, including scalable ballistic styles. Color options: black, white, red and green.
Full-Color, HD AMOLED Display
While the Thermion’s HD AMOLED display delivers crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid, high-resolution imaging and power saving.

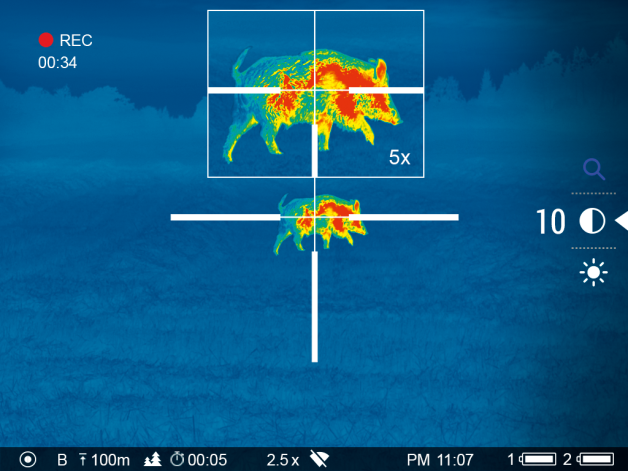

Picture-in-Picture
Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise shot placement.
Upgradable Functional
Functions and features of Thermion models as well as their performance can be upgraded and improved with the release of new software.
Hulp nodig bij het inschieten van de Thermion?
Klik op de onderstaande link en/of bekijk het filmpje.
http://articles.pulsarnv.com/index.php/thermion-zero/
Package Content
- Pulsar Thermion XQ38
- Eye piece
- Charger
- Cable
- lens cloth
- APS 2 and 3 Battery Compartment Cap
- Safety Bag
- Box
- Quick-manual
