The NEW LEVEL OF THERMAL SPOTTING
Full featured, extra sensitive, ultra compact monocular
Highly sensitive thermal imaging sensor
The Axion XQ’s 384x288 @ 17 µm thermal imaging sensor with NETD 40mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imager.
Light-weight and Rugged Magnesium Alloy Housing
Housing made from light-weight magnesium alloy ensures high structural rigidity and ruggedness. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.
Detection range more than 1300 meters
A powerful F38/1.2 objective lens combined with a 384x288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1350 m away in complete darkness.
Video and Still-Photo Recording
The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 Gb of internal memory provide many hours of recorded video and tons of photos.
Image Boost Technology
Pulsar’s proprietary Image Boost Technology is comprised of software algorithms designed to increase imaging clarity and overall image detail. Image Boost results in a sharper, more detailed field of view and enhanced object identification capabilities.
Image Boost OFF ------- Image Boost ON
IPX7 Waterproof Rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
More features
Full-Color, HD AMOLED Display
New HD display delivers crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid, high-resolution imaging and power saving.
B-Pack mini APS5 battery system
Quick-change high capacity rechargeable Li-Ion battery offers 6 hours of operation time on single charge. Fast and easy battery replacement in combination with instant start-up ensure continuous observation without disruptions. Ordinary power bank connected via USB Type-C socket can be used as an external power source.
Observation Modes
Image optimization should be performed depending on the environmental location and conditions. Mountains, cities and forests have different ambient temperatures. In order to achieve the highest possible image quality, certain settings have been optimized and gathered into profiles. As a result, optimized imaging in various conditions is easier. Identification preset is another optimal-imaging option that makes identifying easier, even at longer distances.
Color Palettes
The 8-color palette enhances viewing in varying conditions. While the classic White Hot mode is exceptionally versatile, Hot Black is often favored for detecting wildlife at night. Red Monochrome helps to reduce or prevent bright backlight from exiting the eyepiece. Sepia often improves long-range observation while Red Hot, Rainbow and Ultramarine enhance temperature differences of various object attributes. Violet helps to identify objects faster.
Variable Digital Zoom from 3.5x to 14x
Digital zoom, up to 14x, provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for specific situation.
Picture-in-Picture Function
Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise zooming on an object of interest.
Wi-Fi. Integration with IOS and Android devices
Built in Wi-Fi module provides connectivity of Axion with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware update capabilities and many others.
Specifications
Main
Sensor: 384x288 pix. @ 17 µm (NETD <40 mK)
Objective lens: F35/1.0
Magnification, x: 2 – 8 (x4 zoom)
Field of view (HxV), degrees / m@100m: 10.7Ń…8 / 18.2x13.7
Detection range, m: 1300
Sensor
Type: uncooled
Resolution, pixels: 384x288
Pixel pitch, µm: 17
NETD, mK: <40
Frame rate, Hz: 50
Optics
Objective lens: F35/1.0
Magnification, x: 2 – 8 (x4 zoom)
Field of view (HxV), degrees / m @ 100 m: 10.7Ń…8 / 18.2x13.7
Eye relief, mm: 14
Display
Type: AMOLED
Resolution, pixels: 640x400
Range Performance
Detection range, m: 1300
Video Recorder
Video / photo resolution, pixel: 528x400
Video / photo format: .mp4 / .jpg
Built-in memory, Gb: 16
Environmental Characteristics
Degree of protection, IP code (IEC60529): IPĐĄ7
Operating temperature range, °Đˇ: -25 – +40
Connections and Compatibilities
Mount, type: 1/4"
Supported Application: Stream Vision 2
Power Supply
Output voltage, V: 3.0 - 4.2
Battery type: Li-Ion Battery Pack APS5
Capacity, mAh: 4900
Operating time on battery pack (at t=22°C), h *: 11 hour
External power supply, V: 5V, 9V (USB Type-C Power Delivery)
Wi-Fi
Frequency, GHz: 2.4GHz
Standard: IEEE 802.11 b/g/n/ac
Line-of-sight reception range, m: 15
Weight & Size
Body material: Magnesium alloy
Dimensions, mm: 152x50x74
Weight, kg: 0.38 (with the APS5 battery)
Trade Data
SKU (Model #): 77478
Accessoires
Package Contents

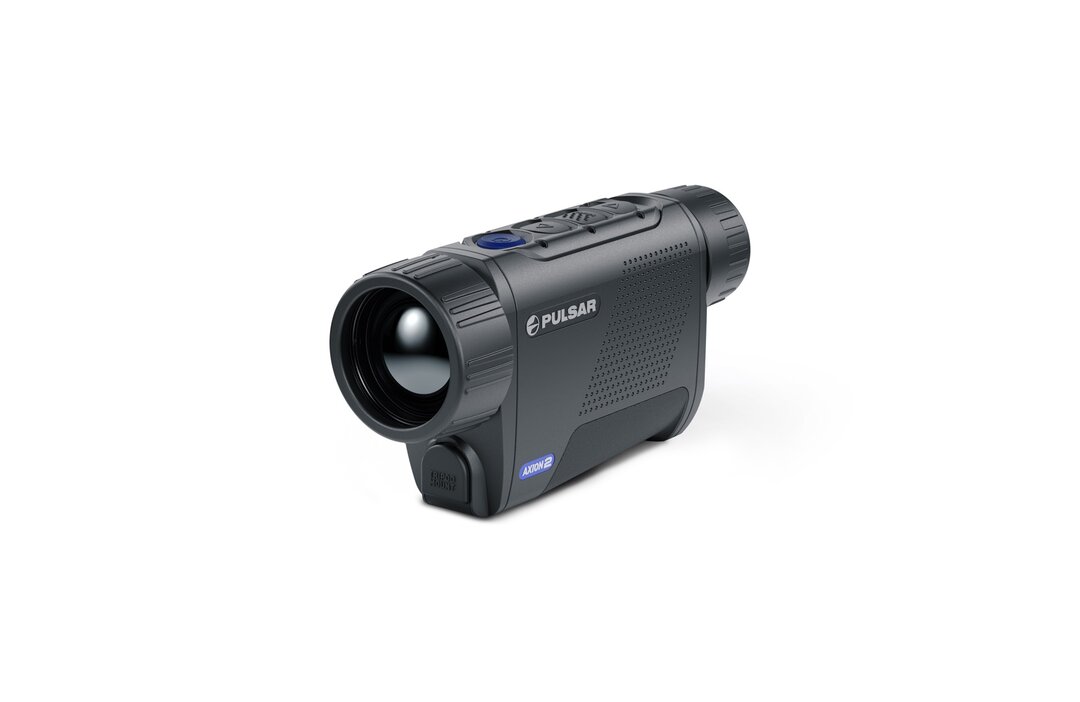

- Pulsar Axion 2 XQ35
- APS 5 rechargeable battery
- 2 battery-locking covers
- Power adapter
- USB Type-C cable
- Carrying case
- Hand strap
- Quick reference user manual
- Lens cleaning cloth
- Warranty information
- Tripod adapter
