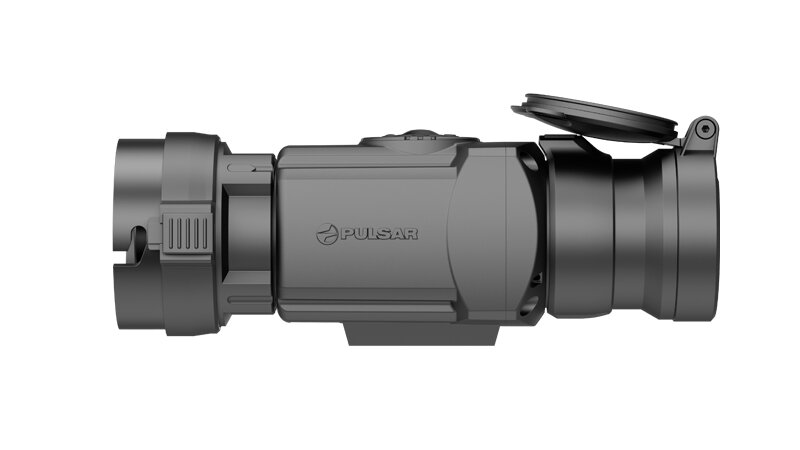

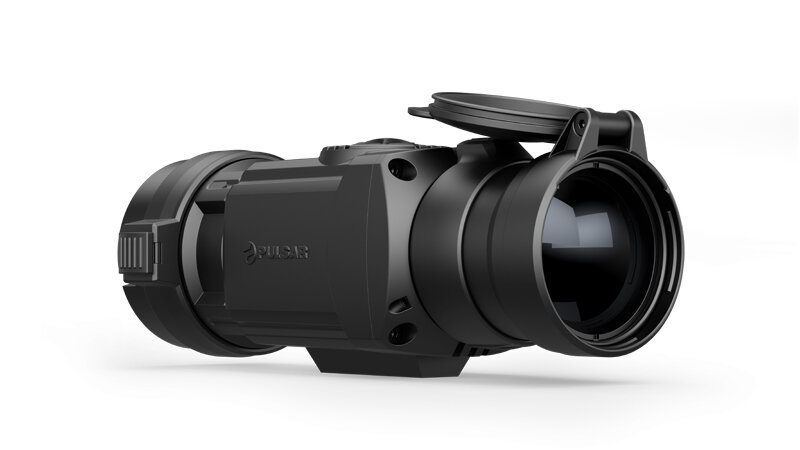

Pulsar Core FXQ38
Digital zoom: Digital zoom
Frost-resistant: Frost resistant
Degree of protection IPX7: Protection against water exposure during short-time submersion
Impact resistance
Core as an Alternative to Thermal Sight
Attachment can become a better alternative to a night vision / thermal scope in the case when optics mounts do not ensure quick mounting and/ or recurrent installation of optics to a correct position. Use of the attachment does not require from a hunter a change in weapon holding position or in style of shooting. Small weight and size simplify controls and do not influence the balance of the rifle significantly.
Quick transformation

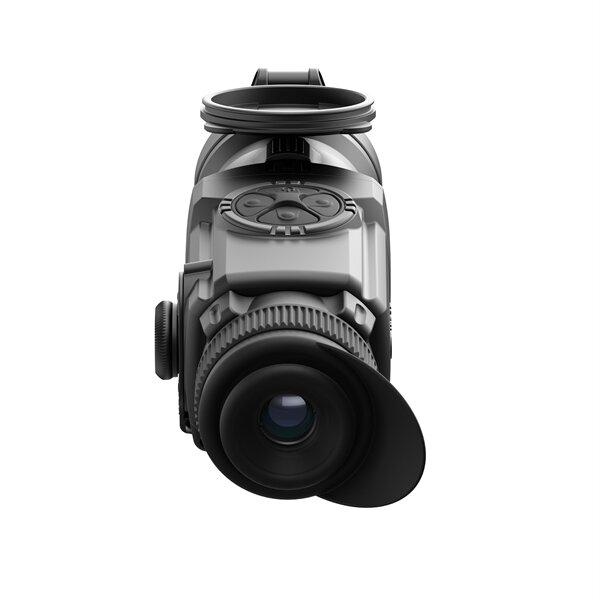

Core FXQ38 and FXQ50 devices include a detachable eyepiece for lightning-quick transitions from thermal riflescope attachment to monocular. Mount and dismount the Core without losing zero!
Point-of-Impact Stability
The Core’s precision build quality, cutting-edge design and advanced software deliver reliable, repeatable point-of-impact stability without requiring any windage or elevation adjustments from the day optic.
Nighttime shooting advantages

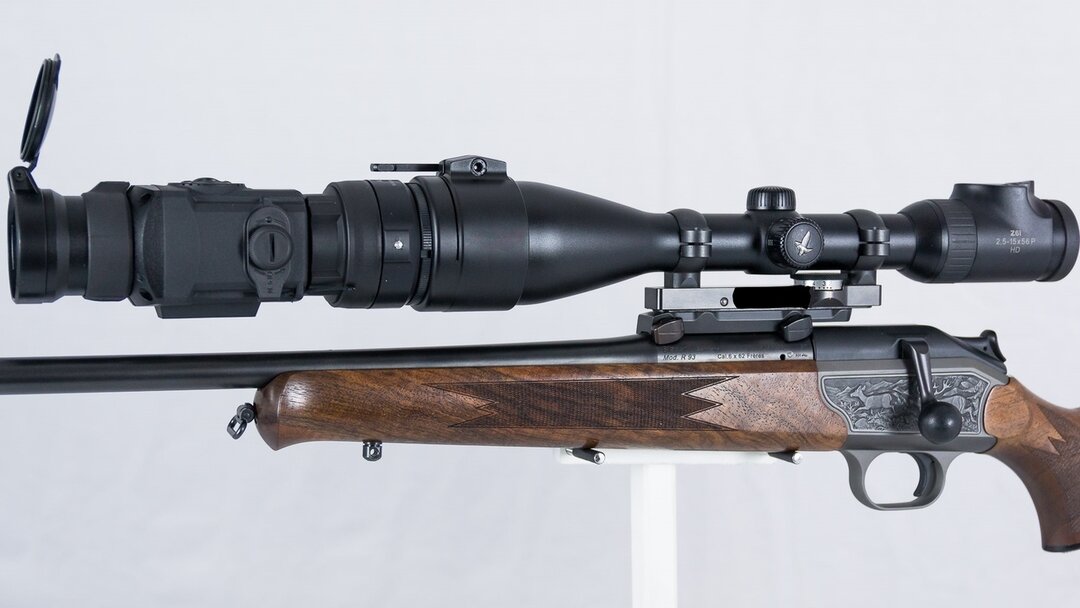

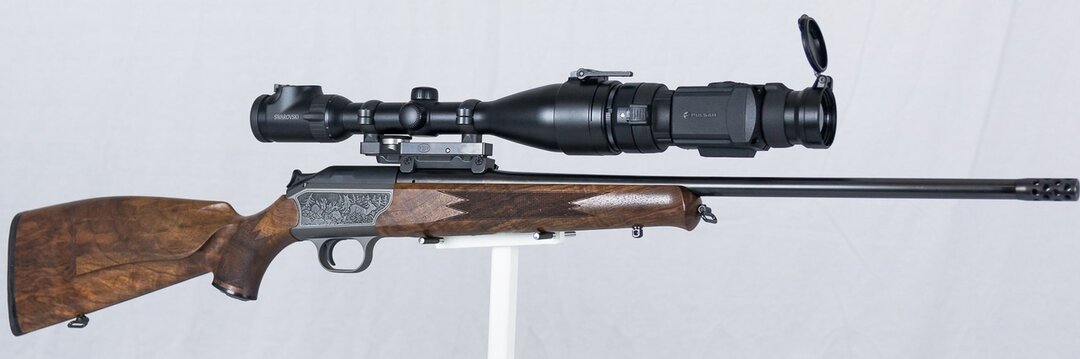

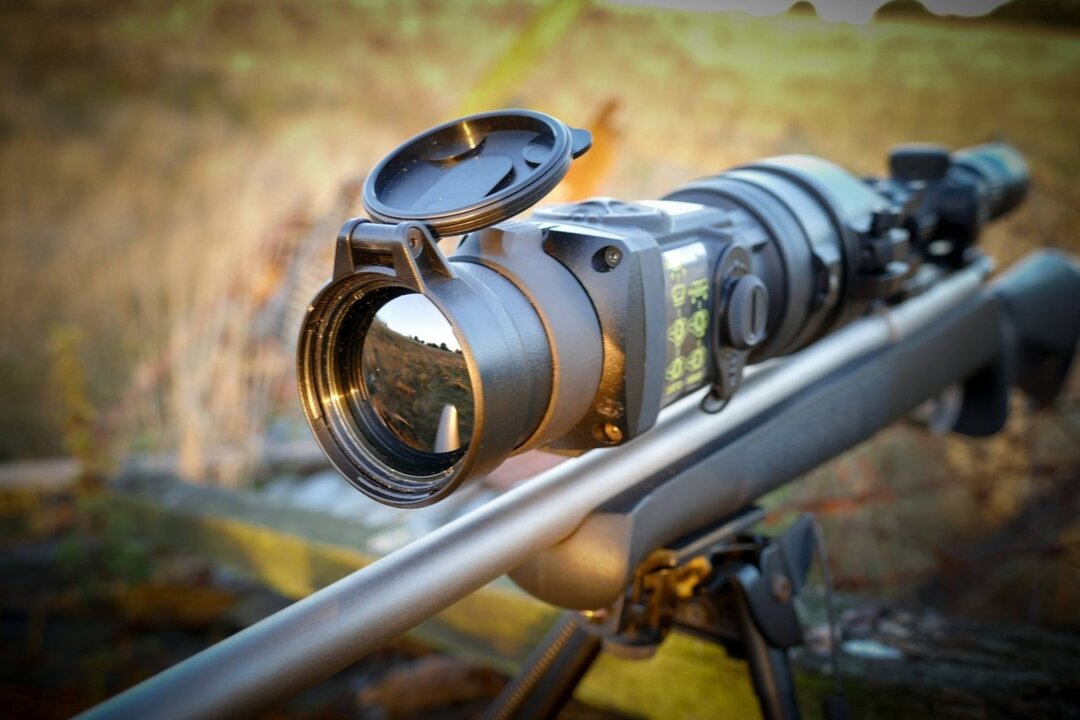

Using the Core Front Attachment includes several benefits over night hunting with traditional optics or even thermal or night vision devices. Attaching the Core to a traditional scope delivers the same creature comforts of shooting with day optics you are accustomed to, including your existing reticle and eye relief. The Core Front Attachment even allows you to continue utilizing your riflescope’s variable magnification.
Compatible with various day optics

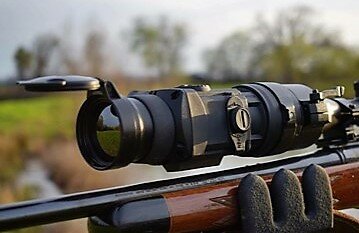

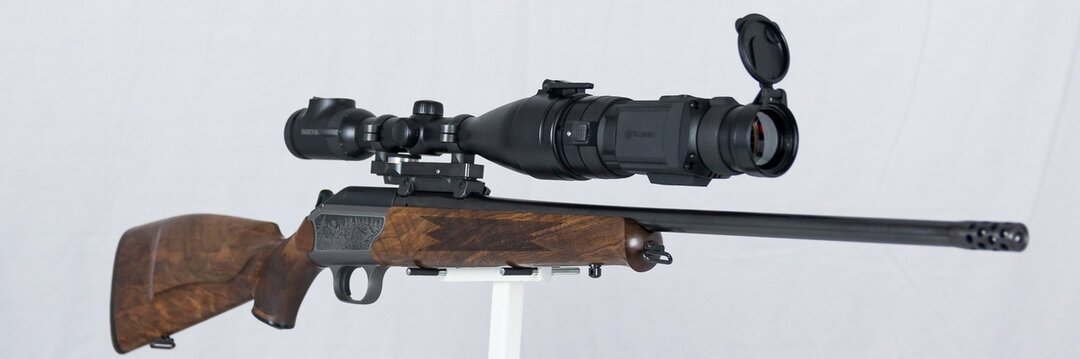

The Core is designed to turn most traditional rifle scopes, with objective lens diameters of 40 mm – 56 mm, into thermal imaging devices without effecting point-of-impact. Attach and detach the Core in seconds, without losing zero, using the Core’s quick-release bayonet mount.
Operating Modes
The Core suggests three operating modes, each designed to deliver best possible image in specific viewing conditions. The modes are as follows: “Rocks” (enhanced contrast), “Forest” (low contrast) and “Identification” (improved rendering of hot objects' details).
Green AMOLED Display
The Core's Green AMOLED screen enhances image quality, improves viewing comfort and reduces eye fatigue.
External Power Supply
The Core FXQ includes a universal power adapter. Operation time can be significantly prolonged by using high-capacity external power supply units, which can be attached via a weather-resistant micro-USB port and DC 2.1 x 5.5 mm.
Calibration
The Core offers three calibration modes: silent manual mode (“M”), automatic (“A”) and semiautomatic (“H”). The “A” mode implies calibration without user participation (process initiation (actuation of the shutter) takes place automatically). In the “H” mode the user decides on his own if calibration is required based on the image quality. Button “Cal” is pressed in this mode. Manual calibration (“M”) is carried out by pressing the button when the lens cap is closed. The “M” mode is recommended for hunting due to silent operation.
Wireless Remote Control
An ergonomic, wireless remote control puts basic Core controls at your fingertips for comfortable, convenient, hands-off operation.
Fully waterproof
IPX7 waterproof-rated protection ensures the Core Front Attachment performs perfectly in wet weather, even during intense rain, snowfall and submersion in 1 m. of water for up to 30 min. (IEC 60529).
Wide range of operating temperatures
With a frost-resistant AMOLED display, the Core Thermal Imaging Scope is designed to deliver flawless performance at an extreme temperature range of -25° - +50°C.
Specifications
Main
Sensor: 384x288 pix. @ 17 µm
Objective lens: F38
Magnification in monocular mode / attachment mode, x: 3.1 – 6.2 / -
Range of observation: 1350 m
Sensor
Type: uncooled
Resolution, pixels: 384x288
Pixel pitch, µm: 17
Refresh rate: 50 Hz
Optics
Field of view (HxV), degrees / m @ 100 m: 9.8x7.4 / 17.2x12.9
Recommended magnification of the day sight, x: 1 – 3
Display
Type: AMOLED
Resolution, pixels: 640x480
Environmental Characteristics
Degree of protection, IP code (IEC60529): IPÐ¥7
Operating temperature range: -25 – +50
Weight & Size
Dimensions, mm: 180x65x60
Weight, kg: 0.38
Power Supply
Output voltage, V: 5 – 7.2
Battery type: 2xCR123A
Operating time on battery pack (at t=22°C), h *: 4
External power supply: 5V
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules: 6000
Shock resistance on the smooth-bore rifles, caliber: 12
Package Content
- Pulsar Core FXQ38
- Eyepiece
- Pulsar Remote Control / Afstandsbediening for Pulsar Core
- Dust free-cloth
- Safety Bag
- Box
