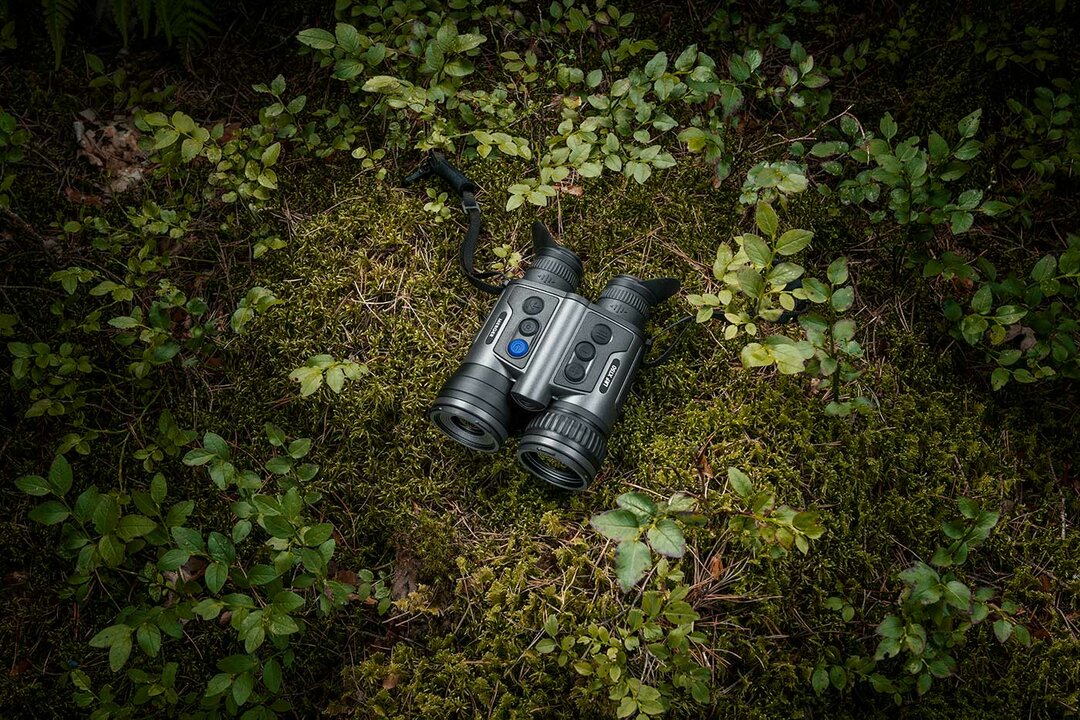

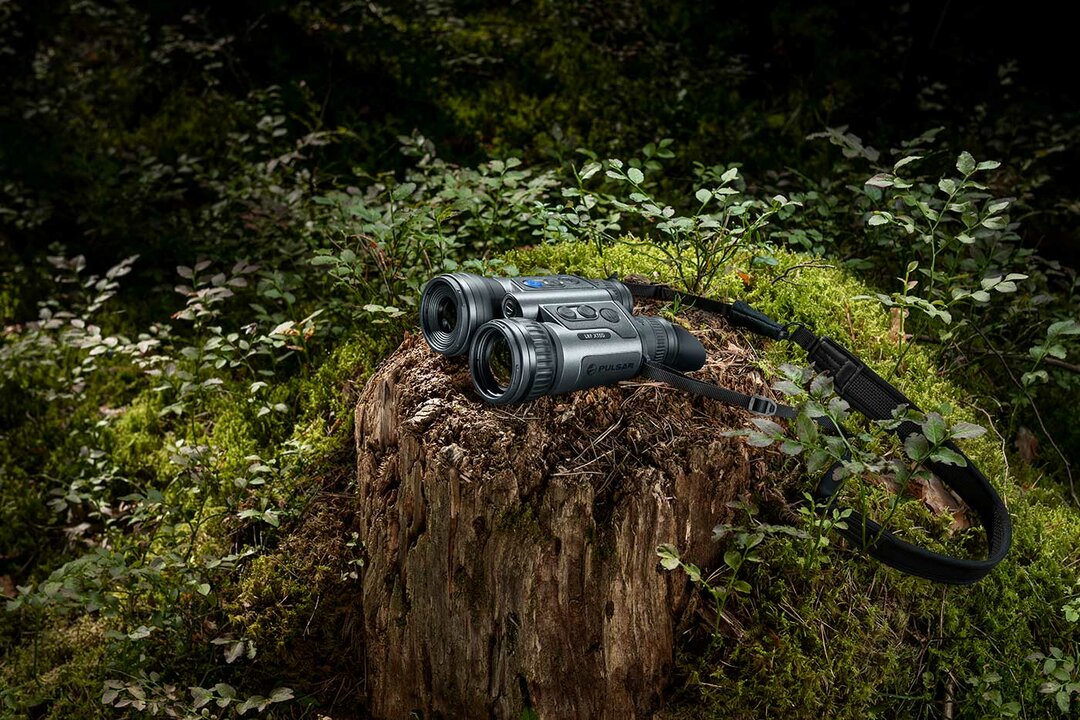

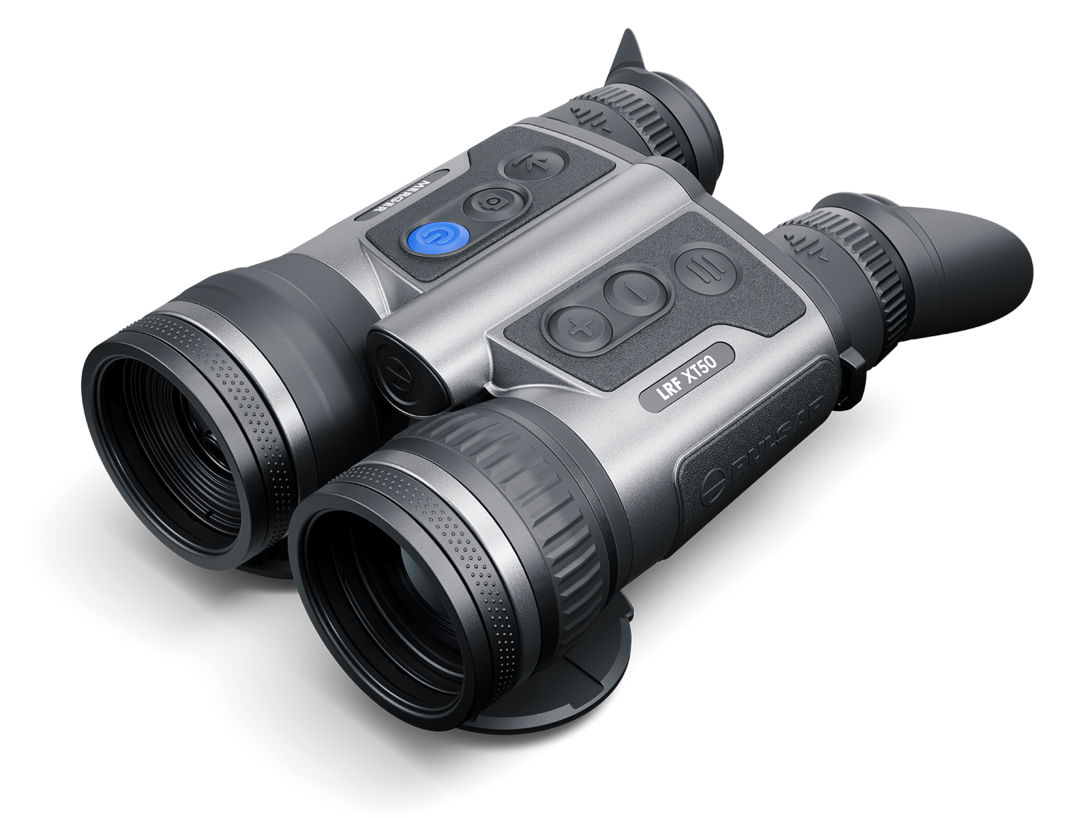

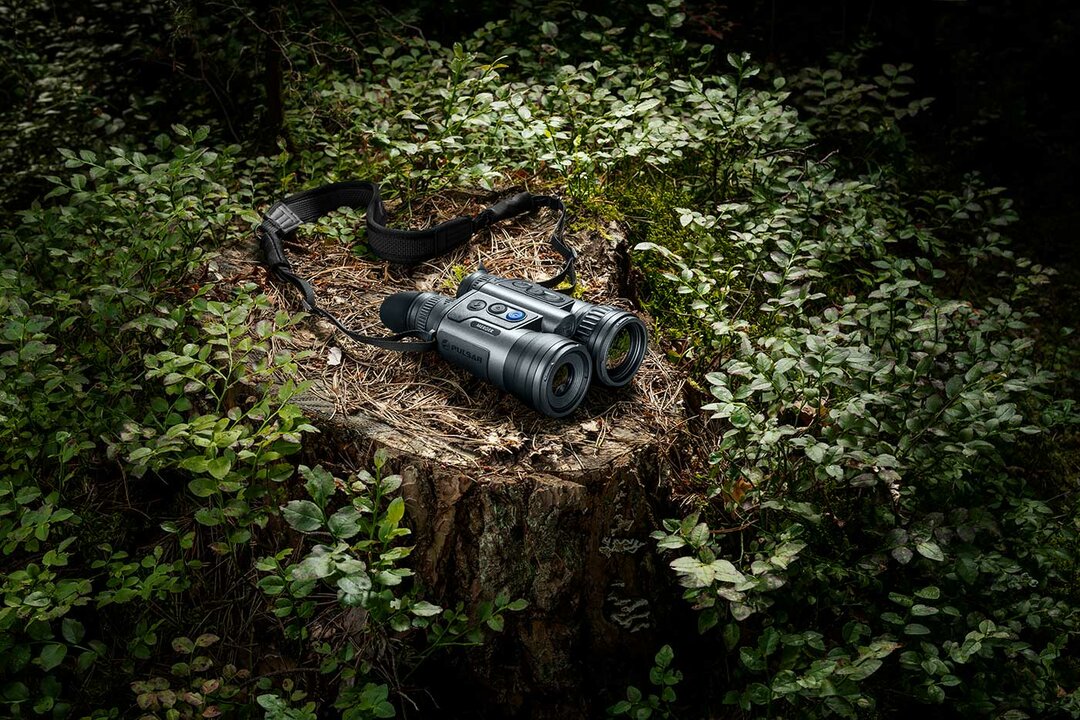

MERGER LRF XT50 Thermal Imaging Binocular (Laser-Rangefinder)
New Premium 12801024 @ 12 µm thermal sensor
Premium model in range of Pulsar thermal imaging binoculars. Merger LRF XT50 offers extraordinary image detail thanks to its 1280x1024 pixel thermal sensor and new AMOLED 1280x960 microdisplay. Merger LRF XT50 provides wide field of view of 17.5 degrees and 2x-16x magnification.
European made thermal imaging sensor
Merger LRF Series ensures unrivalled thermal imaging experience. For image capture Merger binoculars use professional-grade, European made Premium thermal imaging sensor 12 micron sensor 1280×1024 offer high definition image quality.
Detailed and sharp image on high zoom
Optical magnification of the unit can be increased by means of digital zoom. Even at the highest level of zoom image detail is sufficient for identifying the smallest object details. Advanced algorithms enhance image quality and help to achieve sharp and detailed image.
Wide field of view
Wide field of view simplifies scanning and spotting hot objects while minimizing effects of image shaking and raising situational awareness. Excellent image detail on base magnification combined with wide field of view ensure improved viewing comfort and scene perception.
Extra-long detection range
Powerful germanium optics combined with professional thermal imaging sensors provide exceptional detection capabilities.
Top Merger LRF units can detect hot objects at distances exceeding 2km.
User mode
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device’s memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

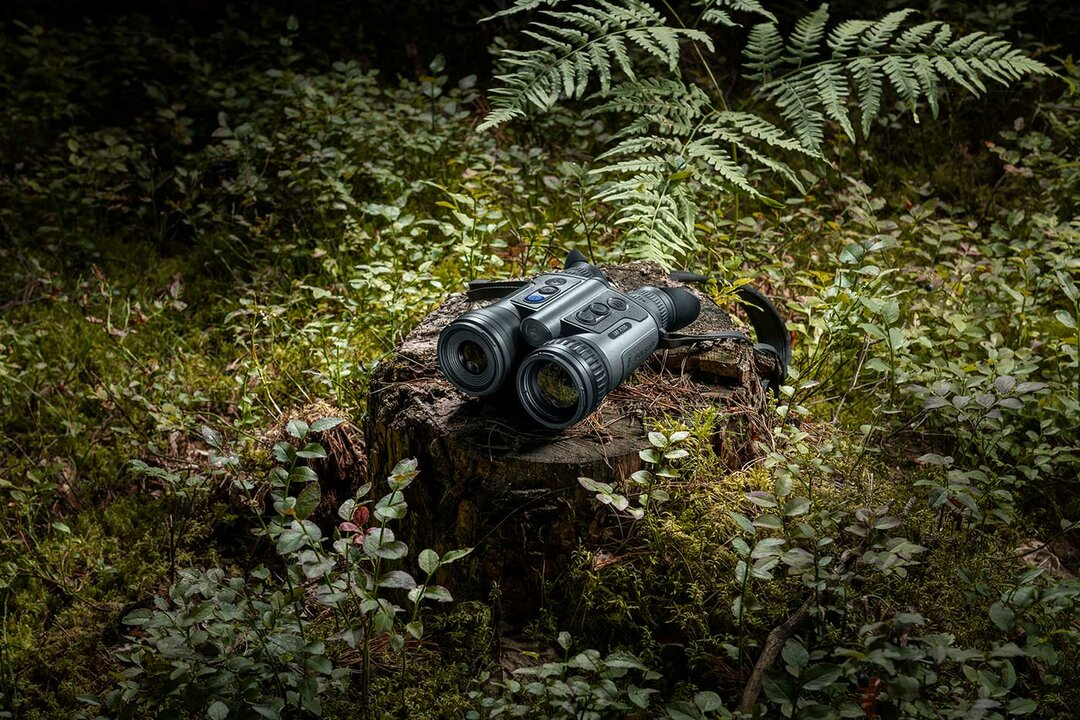

Classic binocular design
Merger LRF thermal imaging binoculars are built with the classic design of daytime binoculars. With a small form factor, these thermal imaging binoculars fit comfortably in the hand, but still offer appealing external aesthetics and exemplary ergonomics. The six function buttons are placed in the comfort access zone and the most used digital device functions are activated with a single touch.
Comfortable viewing experience with both eyes
The Merger LRF binoculars’ optical design takes into account the nature of human vision. It is natural for a person to receive visual information through two visual channels simultaneously. Viewing with two eyes is less tiring than viewing with one. This means better detection of small or faint objects, and better performance in low-contrast scenarios than similar monocular thermal imaging devices with the same technical level. The interpupillary distance in the Merger LRF binoculars is adjustable from 63 to 74 mm in accordance with the individual characteristics of a particular user.
Precise laser rangefinder
Understanding the target distance is an essential factor in making the right decisions.
A built-in laser rangefinder with a range of up to 1,5 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.
Combined dual battery system
The Merger LRF Series is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees long battery life.
More Features
High-quality reinforced magnesium alloy housing
Built-in photo and video recorder
Stream Vision 2. Wi-Fi integration with iOS and Android devices
Improved Wi-Fi connectivity with 2.4 / 5 GHZ waveband support
High-contrast HD AMOLED displays
IPX7 Waterproof Rated
Wide range of operating temperatures (-25 to +50°C)
A selection of 8 color palettes
Proximity sensor
Picture in Picture
3 Sensitivity enhancement levels
Fast aperture F1.0 optics
Specifications
Main
Sensor: 1280x1024 @ 12 µm (NETD < 40 mK))
Objective lens: F50 / 1.0
Magnification, x: 2 - 16
Field of view (HxV), degrees / m@100m: 17.5х14 / 30.7х24
Detection range, m: 2300
Sensor
Type: uncooled
Resolution, pixels: 1280x1024
Pixel pitch, µm: 12
NETD, mK: <40
Frame rate, Hz: 50
Optics
Objective lens: F50 / 1.0
Magnification, x: 2. - 16
Field of view (HxV), degrees / m @ 100 m: 17.5х14 / 30.7х24
Interpupillary distance adjustment, mm: 62 – 74
Eye relief, mm: 15
Display
Type: AMOLED HD
Resolution, pixels: 1280х960
Range Performance
Detection range, m: 2300
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014: 1
Wavelength, nm: 905
Max. measuring range, m: 1500
Measurement accuracy, m: ± 1
Video Recorder
Video / photo resolution, pixel: 1280х960
Video / photo format: .mp4 / .jpg
Built-in memory, GB: 64
Wi-Fi
Wireless Protocol: Wi-Fi
Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz: 2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529): IPХ7 (waterproof)
Operating temperature range, °С: -25 – +50
Connections and Compatibilities
Mount, type: 1/4" socket
Supported Application: Stream Vision 2
Power Supply
Output voltage, V: 3.7
Battery type: Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal)
Capacity, mAh: 3200 (external) + 4000 (internal)
Operating time on battery pack (at t=22°C), h *: 8
External power supply, V: 5V, 9V (USB Type-C Power Delivery)
Weight & Size
Body material: Magnesium alloy
Dimensions, mm: 197x140x72
Weight, kg: 0.95 (batteries included)
Trade Data
SKU (Model #): 77481
Status: production
Package Contents
- Pulsar Merger LRF XL50
- APS 3 Battery pack
- APS Battery charger
- Power adapter
- USB Type-C cable with USB Type-A adapter

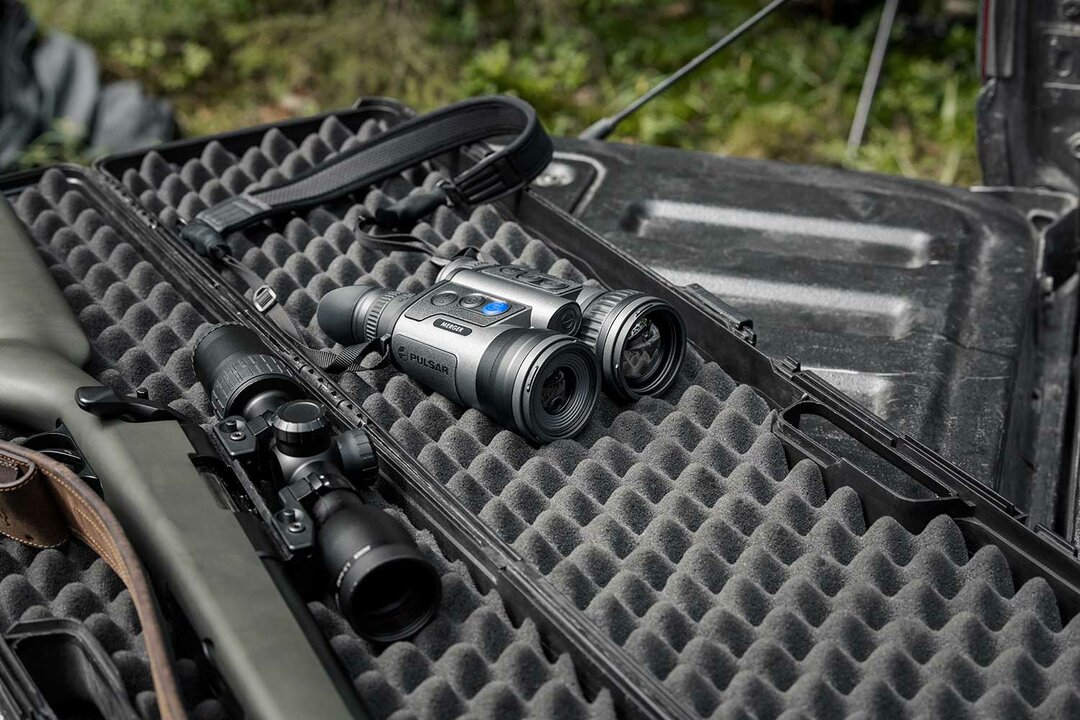

- Carrying case
- Neck strap
- Lens-cleaning cloth
- Quick start guide
- warranty card
- Tripod adapter
