Pulsar Metalen PSP-B Adapter voor Krypton & Proton Pulsar Metalen PSP-B Adapter voor Krypton & Proton
Pulsar Metalen PSP-B Adapter voor Krypton & Proton Pulsar Metalen PSP-B Adapter voor Krypton & Proton
Pulsar Metalen PSP-B Adapter voor Krypton & Proton
Pulsar PSP-B Adapter voor Krypton & Proton

Artikelnummer

79205 - 79206 - 79207 - 79208

€ 119,00
Prijs per stuk
Aantal:
Bestellen

Op verlanglijst

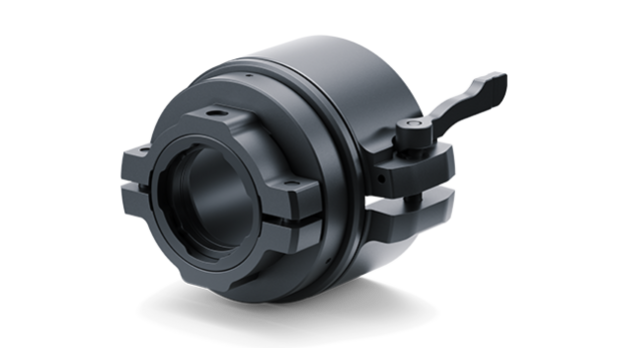

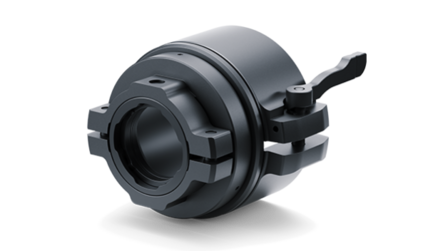

Pulsar PSP-B Adapter voor Krypton & Proton

Pulsar Metalen Adapter 30, 42, 50 of 56mm. Voor Pulsar Krypton & Proton

  • PSP-30B Ring Adapter voor buiten diameter richtkijker met opvulringen 30mm (Voornamelijk drijfjacht richtkijker).
  • PSP-42B Ring Adapter voor buiten diameter richtkijker met opvulringen vanaf 46mm tot 50,6mm.
  • PSP-50B Ring Adapter voor buiten diameter richtkijker met opvulringen vanaf 51,6mm tot 59,6mm.
  • PSP-56B Ring Adapter voor buiten diameter richtkijker met opvulringen vanaf 59,7mm tot 65,6mm.

Deze adapter is geschikt voor:

  • Pulsar Proton
  • Pulsar Krypton
  • Pulsar Krypton 2.0

Quick removal and installation, reliability and ease of use of the Krypton and Proton thermal imaging attachments.

The precise screen positioning mechanism enables the perfect alignment of the thermal or night vision image in the field of view of daylight optics for maximum viewing comfort.


Description

Quick-release bayonet coupling of adapter and attachment

Quick-release bayonet coupling of adapter and attachment

The thermal imaging attachment is mounted on the adapter using a four-point bayonet. The bayonet coupling is highly reliable and quick and easy to attach. The attachment is removed from one adapter and installed on another with no need for special tools, allowing you to quickly and easily turn various daytime optics in the hunter's arsenal into thermal imaging optics.

Quick removal and installation on the daytime optics lens

The adapter with the attachment is fixed on the lens of daylight optics by the retainer clip. It takes only a few seconds to remove or install the clips.

Fine positioning of attachment’s screen within the field of view

Fine positioning of attachment’s screen within the field of view

The position of the attachment’s screen can be adjusted in an optical sight or other daylight optics field of view by means of a specially designed mechanical part. Observation becomes complete, informative and smooth.

Metal Housing

Metal parts are widely used in the design and construction of the PSP-B adapters. The adapter body is milled from aluminum alloy for its high strength and light weight. The screws, retainer clip and pins are manufactured from steel.

Tolerance to temperature extremes

Tolerance to temperature extremes

High temperature differences do not affect the operation or performance of the adapter. The adapter can be operated reliably in severe frost conditions without any adjustments when installed indoors.

Durability

The adapter is designed for long service as well as for use with daylight riflescopes mounted on large caliber hunting weapons.

Perfect compatibility with a wide range of daytime optics

With the PSP-B adapter line, Proton and Krypton thermal imaging attachments can now be used with most daytime optical riflescopes (monoculars) with a lens diameter of 40 to 56 mm, as well as riflescopes manufactured in the form of enclosed tubes with a diameter of 30 mm (riflescopes for driven hunting). One of the insert rings supplied with the unit needs to be inserted in the adapter before mounting it on the lens of a daylight optical device (spotting scope, binocular or sight). The ring selection is determined by the outer diameter of the lens housing of the optical device. The moulded plastic rings provide gentle contact and a smooth fit with the day optic and improve the reliability and integrity of mounting.


Adapters model line

PSP-30B Ring Adapter

PSP-30B Ring Adapter

Installation of Proton and Krypton thermal imaging attachments on the front of the riflescopes, which are made in the shape of a tube with a diameter of 30 mm (riflescopes for driven hunting).

PSP-42B Ring Adapter

PSP-42B Ring Adapter

Installation of Proton and Krypton thermal imaging attachments on the lens body of most riflescopes with an optical diameter of 40–42 mm. Inserts with inner diameters of 46 mm (for mounting the adapter on daytime optics with an outer lens diameter of 46 mm), 46.5 mm (46.5 mm), 47 mm (46.7–47.6 mm), 48 mm (47.7–48.6 mm), 49 mm (48.7–49.6 mm), 50 mm (49.7–50.6 mm) are provided as a standard accessory.

PSP-50B Ring Adapter

PSP-50B Ring Adapter

Installation of Proton and Krypton thermal imaging attachments on the lens body of most riflescopes with an optical diameter of 50 mm. Inserts with an inner diameter of 51.6 mm (for mounting the adapter on daytime optics with an outer lens diameter of 51.6 mm), 53.4 mm (53.4 mm), 55 mm (54.7–55.6 mm), 56 mm (55.7–56.6 mm), 57 mm (56.7–57.6 mm), 58 mm (57.7–58.6 mm), 59 mm (58.7–59.6 mm) are provided as a standard accessory.

PSP-56B Ring Adapter

PSP-56B Ring Adapter

Installation of Proton and Krypton thermal imaging attachments on the lens body of most riflescopes with an optical diameter of 56 mm.
Inserts with an inner diameter of 60 mm (for mounting the adapter on daytime optics with an outer lens diameter of 59.7 – 60.6 mm), 61 mm (60.7 – 61.6 mm), 62 mm (61.7 – 62.6 mm), 63 mm (62.7 – 63.6 mm), 64 mm (63.7 – 64.6 mm), 65 mm (64.7 – 65.6 mm) are provided as a standard accessory.
