The top-class optics of the Pulsar Thermion 2 LRF series are designed for maximum image detail. The 60 mm lenses capture the smallest heat signals, while the 60 mm optics in the Thermion 2 LRF 60 are designed for long-range application.
Sharp, richly contrasted thermal imaging is used for enhanced identification of animals, their extremities, and even the smallest details, i.e., branches, leaves, grass, and terrain.

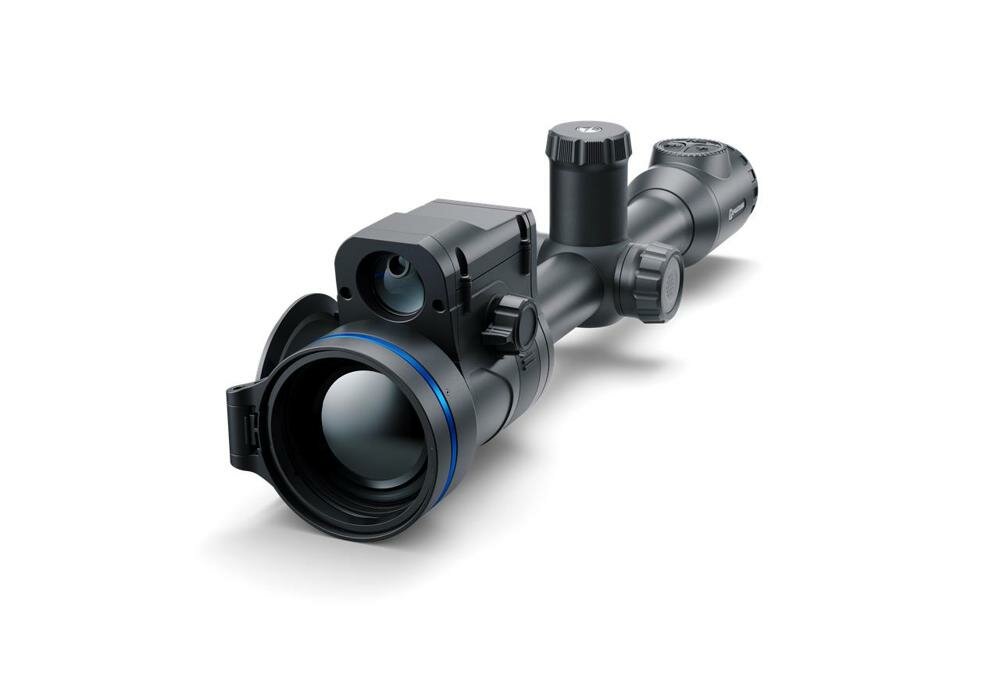

Understanding the target distance is an essential factor in making the right decisions. The compact laser rangefinder, with a range of up to 800 metres, is seamlessly integrated into a slim-design riflescope. The receiver and emitter are within the clearance limits of a single optical channel.
Integrated ballistic calculator for long-range shooting
The Thermion 2 LRF ensures accurate shooting at any distance. The built-in laser rangefinder gives the hunter a precise distance to the target. At the same time, the sophisticated internal ballistics algorithm calculates the suggested POA for accurate long-range shooting. Simply create a ballistic profile for your shooting equipment, upload it to the Thermion’s memory with the Stream Vision Ballistics App, and turn your Thermion 2 LRF into a highly accurate and efficient long-range aiming tool.
Wide field of view for easy scanning
The Thermion 2 LRF series allows you to choose the best field of view for your application. From 7.3 ° in the Thermion 2 LRF XG60 and 14 ° in the XL50 models, you’re sure to find the best FOV and magnification ratio for your needs.
Clear wide-angle eyepiece
The Pulsar Thermion 2 LRF 60 comes with an upgraded wide-angle eyepiece. The new optics are optimized specifically for use with high-resolution micro-displays, ensuring a clearer view and more comfortable observation with the 8 mm exit pupil.
Highest eye relief in class: 65 mm
Designed for long-range use, the Pulsar Thermion 2 LRF 60 line is also safe to use with high-calibre ammunition. The 65 mm eye relief is the highest in its class, ensuring both enhanced safety and flawless screen visualization.
High-precision ambidextrous lens focusing
An objective lens with an internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy for either left—or right-handed users.
Wireless remote control included
The Pulsar BT wireless Bluetooth remote control completely duplicates the regular buttons. The remote control features excellent ergonomics − the buttons activate the most used functions while rotating or pressing the encoder, operating fine adjustment and menu navigation. The buttons and encoder’s design, size and positioning are customized for use with both bare and gloved hands. It takes minimum movement for a hunter to control the riflescope enabling them to maintain maximum concentration on the hunting process with the remote control placed in any convenient position on the fore-end or rifle butt.
Other features
10 shooting profiles / 100 zeroing distances
Wi-Fi integration with iOS and Android devices
64 GB memory photo and video recording
A selection of 10 reticle shapes in 9 colour modes
IPX7 submersion waterproof rated
Mounting on standard 30 mm rings
.375H&H ready
Customizable user mode for individual image adjustment
Combined dual battery system
Operation in extreme temperatures -25 to +50°C
Specifications
Main Specifications
Sensor:@ 17 µm 640х480
Objective lens: F60/1.1
Magnification, x: 4 - 32
FOV (HxV), degrees: 7.3
FOV (HxV), m@100m:12.8
Detection range: 2800 m
Reticle
Click range, H/V, mm at 100m: 2000 / 2000
Click value, H/V, mm at 100m: 10 mm - 4x, 5 mm - 8x, 2.5 mm -16x, 1.25 mm - 32x
Number of preloaded reticles: 10
Sensor
Type: uncooled
Resolution, pixels: 640х480
Pixel pitch, µm: 12
Sensor NETD, mK: < 40
System NETD, mK: < 20
Frame rate, Hz: 50
Optics
Objective lens: F60/1.1
Magnification, x: 4 - 32
FOV (HxV), degrees: 7.3
FOV (HxV), m@100m: 12.8
Eye relief, mm: 65
Display
Type: Micro-OLED
Resolution, pixels: 2560x2560
Laser Rangefinder
Max. measuring range, m: 800
Measurement accuracy, m: ± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014: 1
Wavelength, nm: 905
Video Recorder
Video / photo resultion, pixel: 1280x960
Video / photo format: .mp4 / .jpg
Build-in memory, GB: 64
Bluetooth
Wireless protocol: BLE 4.2
Wireless standard: IEEE 802.15.1
Frequency, Ghz: 2,4
Wi-Fi
Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4 / 5
Environmental Characteristics
Degree of protectionIP code (IEC60529): IPX7 (waterproof)
Operating temperature range, °С: -25 – +50
Connections and Compatibilities
Compatible mounts: Standard 30 mm rings
Supported application: Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber: 12
Max. recoil power on rifled weapon (Eo), Joules: 6000
Weight and Size
Body material: Aluminum alloy
Dimensions, mm: 442x84x98
Weight, kg: 1.2
Package Content
- 1x Thermion LRF XG60
- 1x Removable rubber eyecup
- 2x АPS3 Battery Pack
- 1x Wireless Remote Control
- 1x APS battery charger
- 1x Power adapter
- 1x USB Type-C cable with USB Type-A adapter
- 1x Carrying case
- 1x Lens-cleaning cloth
- 1x Quick User Manual
- 1x Warranty card
