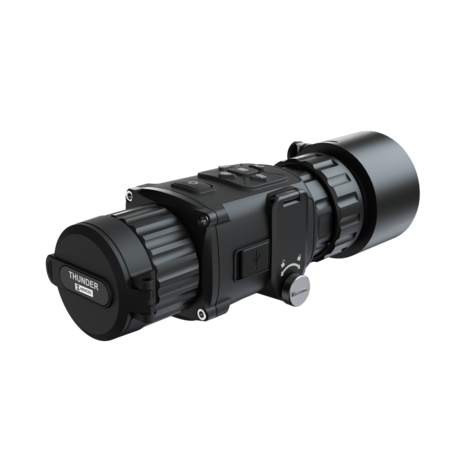

Hikmicro Thunder PRO TE19C Clip-on Warmtebeeld (Voorzetkijker)
256Ă—192, 12 ÎĽm, Detection Range 900 m

Artikelnummer

HM-TR12-19XG/W-TE19C

Standaard levertijd

Uit voorraad leverbaar

€ 1.185,00
Prijs per stuk
Aantal:
Bestellen

Het is mogelijk om de Nederlandse taal te selecteren in het toestel

HIKMICRO THUNDER Pro TE19C Thermal Monocular has 256 × 192 thermal detector and 1024 × 768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.

Key Features

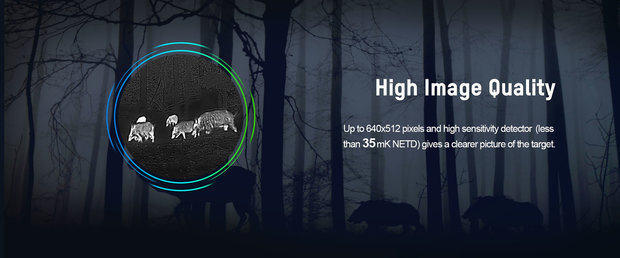

  • 256 × 192 thermal resolution, high sensitivity detector, NETD less than 35 mK (25°C, F# = 1.0)
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024 × 768 resolution 0.39-inch OLED display
  • Supports distance measurement, and hotspot function
  • Supports video recording and snapshot, built-in EMMC (16 GB)
  • Up to 4.5 hours continuous working
  • Detection Range 900 m










Specifications

Thermal Module
Image Sensor: Uncooled Focal Plane Arrays
Max. Resolution: 256 × 192
Frame Rate: 25 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: less than 35 mK (25°C, F# = 1.0)
Lens (Focal Length): 19 mm
Detection Range: 900 m
IFOV: 0.63 mrad
Field of View: 9.24° × 6.94°
Min. Focusing Distance: 1 m
Aperture: F1.0
Magnification: 1×

Image Display
Display: 1024 × 768, 0.39 inch, OLED
Palettes: Black hot, white hot, red hot, fusion
Exit Pupil: 22 mm
Eye Relief: 10 mm
System
Record Video: On-board video recording
Capture Snapshot: Yes
Standby Mode: Yes
Uniformity Correction: Auto, Manual, External Correction
Storage: Built-in EMMC (16 GB)
PIP: Yes
DPC: Yes
Hotspot: Yes
Hot Track: Yes
Reticle: Yes
Distance Measurement: Yes

Power Supply

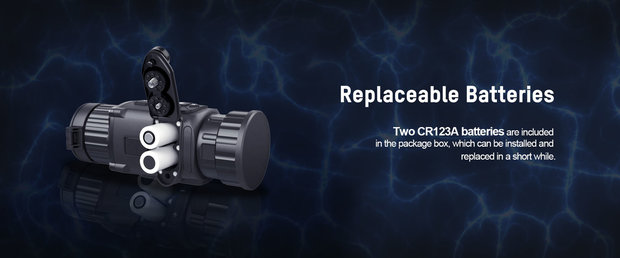

Battery: Replaceable
Applicable type: CR123A, RCR123A
Battery Operating Time: 4.5 h (25°C, with hotspot off)
Anti-reverse Battery connection: Yes
Overvoltage Protection: Yes
Battery Capacity Display: Yes
Type-C Power Supply: 5 VDC, 2 A
Supports external power supply

General
Port: Type-C
Work Temperature/Humidity: -20°C to 55°C (-4°F to 131°F)

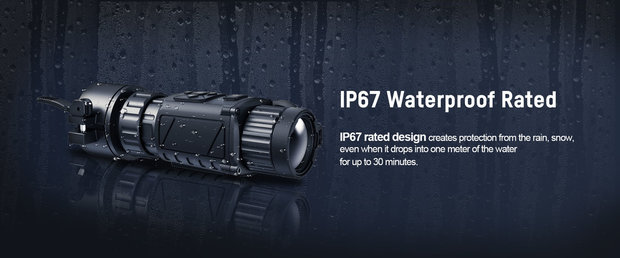

Protection Level: IP67

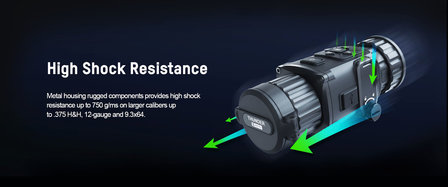

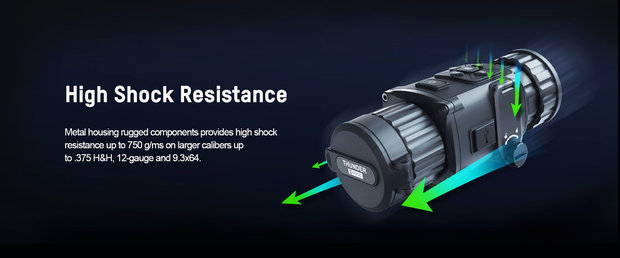

Vibration & Shock: 750 g/1 ms
Dimension: 153.2 × 62.5 × 59.2 mm (6.03” × 2.46” × 2.33”)
Weight: 419 g without eyepiece and batteries
Wi-Fi Code: always the 9 last numbers and letters of the Serial number

How to zeoring the Thunder front scope

Take the device and place it on the rifle scope. Next keep both buttoms (front and back) pressed. Don't press the on/out buttom!


Accesoires

Adapter,  Reduceerring en/of Oogrubber voor Thunder op richtkijker te koppelen


What's in the box

  • Hikmicro Thunder TE19C
  • Quick start guide
  • Battery CR123A (x2)
  • Type-C Cable
  • Dust-free cloth
  • Wrench
  • Bag
  • Tightening plate
