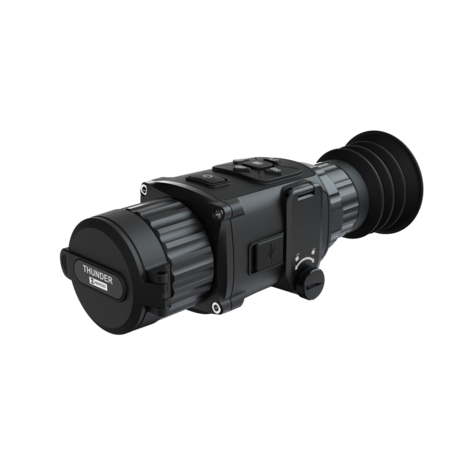

HIKMICRO THUNDER Pro TE19 Thermal Image Scope has 256 × 192 thermal detector and 1024 × 768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
Key Features
- 256 × 192 thermal resolution, high sensitivity detector, NETD < 35 mK (25°C,F# = 1.0)
- Image processing technology: Adaptive AGC, DDE, 3D DNR
- 1024 × 768 resolution 0.39-inch OLED display
- Supports distance measurement, and hotspot function
- Supports video recording and snapshot, built-in EMMC (16 GB)
- Supports digital zoom and cursor function, palettes of color adjustable
- Up to 5 hours continuous working
Specifications
Thermal Module

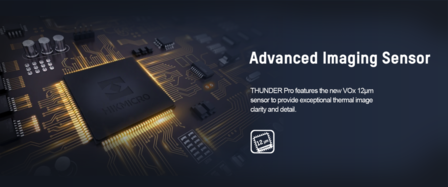

Image Sensor: Uncooled Focal Plane Arrays
Max. Resolution: 256 × 192
Frame Rate: 25 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: less than 35 mK (25°C, F# = 1.0)
Lens (Focal Length): 19 mm
Detection Range: 900 m
IFOV: 0.63 mrad
Field of View: 9.24° × 6.94°
Min. Focusing Distance: 1 m
Aperture: F1.0
Magnification: 2.5 to 20 (x8 zoom)
Image Display
Display: 1024 × 768, 0.39 inch, OLED
Palettes: Black hot, white hot, red hot, fusion
Exit Pupil: 6 mm
Eye Relief: 45 mm
Diopter (Range): -5D to +3D
System
Record Video: On-board video recording
Capture Snapshot: Yes
Standby Mode: Yes
Uniformity Correction: Auto, Manual, External Correction
Storage: Built-in EMMC (16 GB)
PIP: Yes
DPC: Yes
Hotspot: Yes
Digital Zoom: 1X, 2X, 4X, 8X
Hot Track: Yes
Reticle: Yes
Distance Measurement: Yes
Power Supply

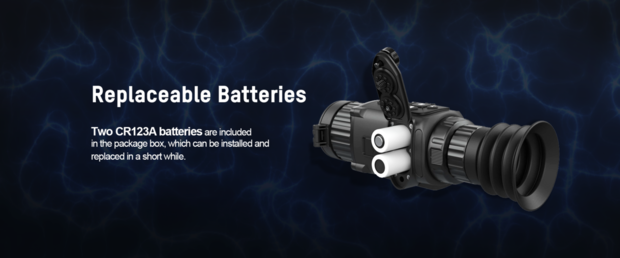

Battery: Replaceable
Applicable type: CR123A, RCR123A
Battery Operating Time: 5 h
Anti-reverse Battery connection: Yes
Overvoltage Protection: Yes
Battery Capacity Display: Yes
Type-C Power Supply: 5 VDC, 2 A
Supports external power supply
General
Work Temperature/Humidity: -20°C to 55°C (-4°F to 131°F)

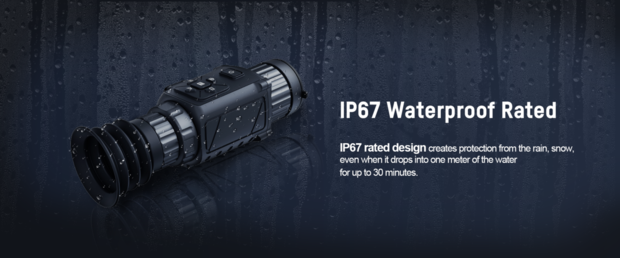

Protection Level: IP67

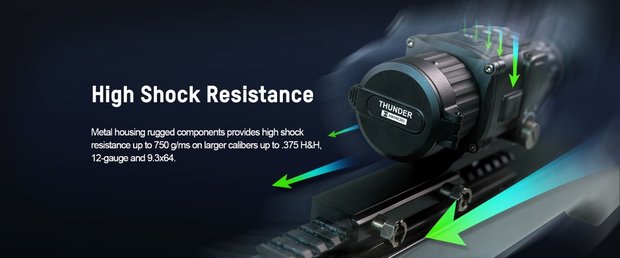

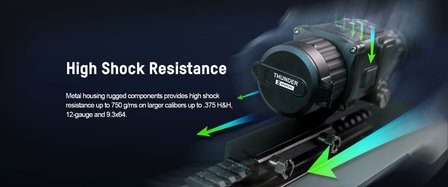

Vibration & Shock: 750 g/1 ms
Dimension: 187.2 mm × 62.5 mm × 59.2 mm
Weight: 415 g without eyepiece and batteries
Port: Type-C
Wi-Fi Code: always the 9 last numbers and letters of the Serial number

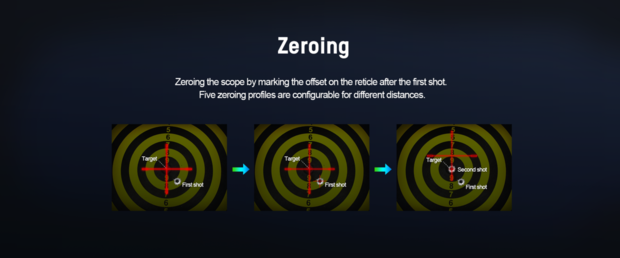

How to zeoring the Thunder front scope
Take the device and place it on the rifle scope. Next keep both buttoms (front and back) pressed. Don't press the on/out buttom!
Accesoires
What's in the box
- Hikmicro Thunder PRO TE19
- Quick start guide
- Battery CR123A (x2)
- Type-C Cable
- Dust-free cloth
- Wrench
- Bag
- Tightening plate
