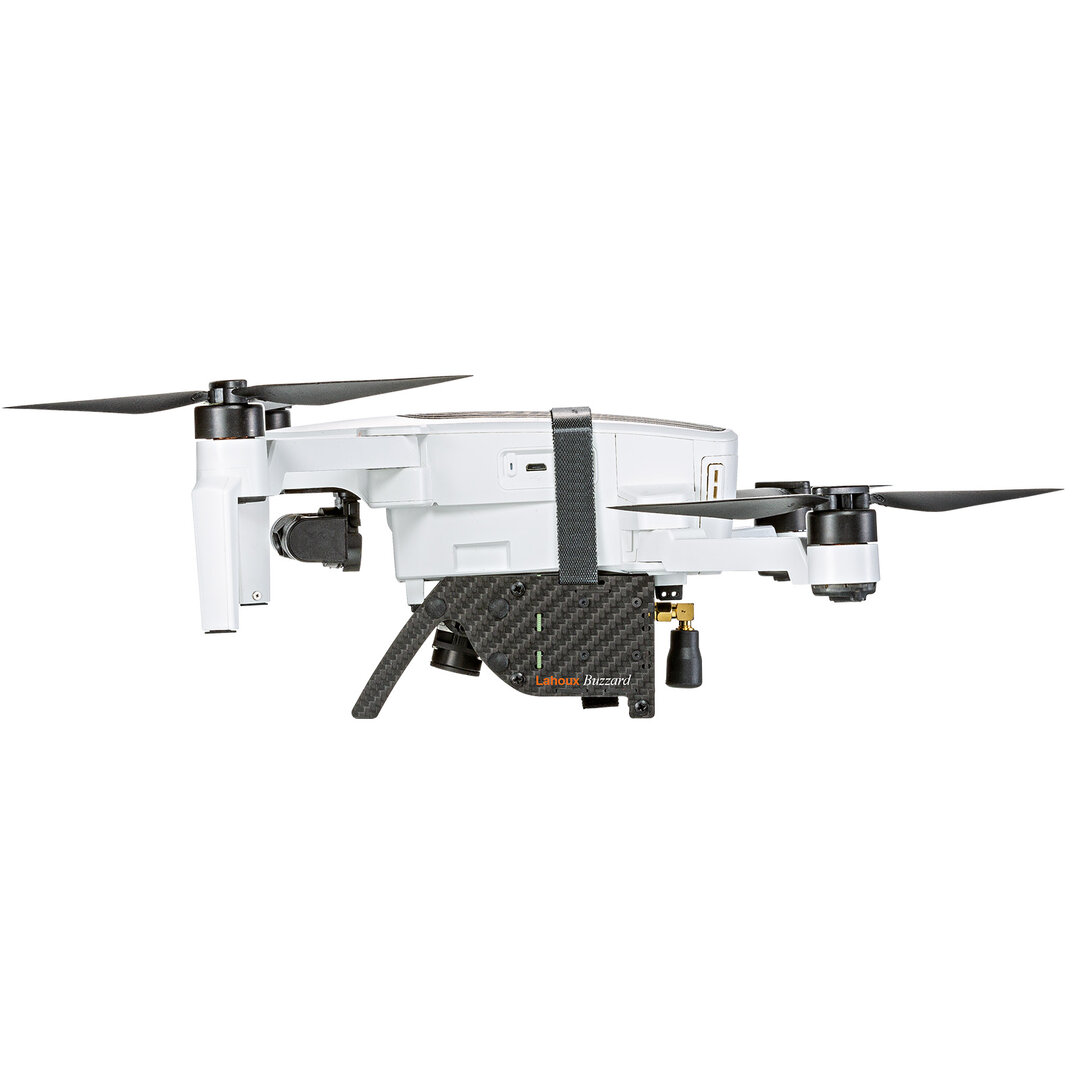

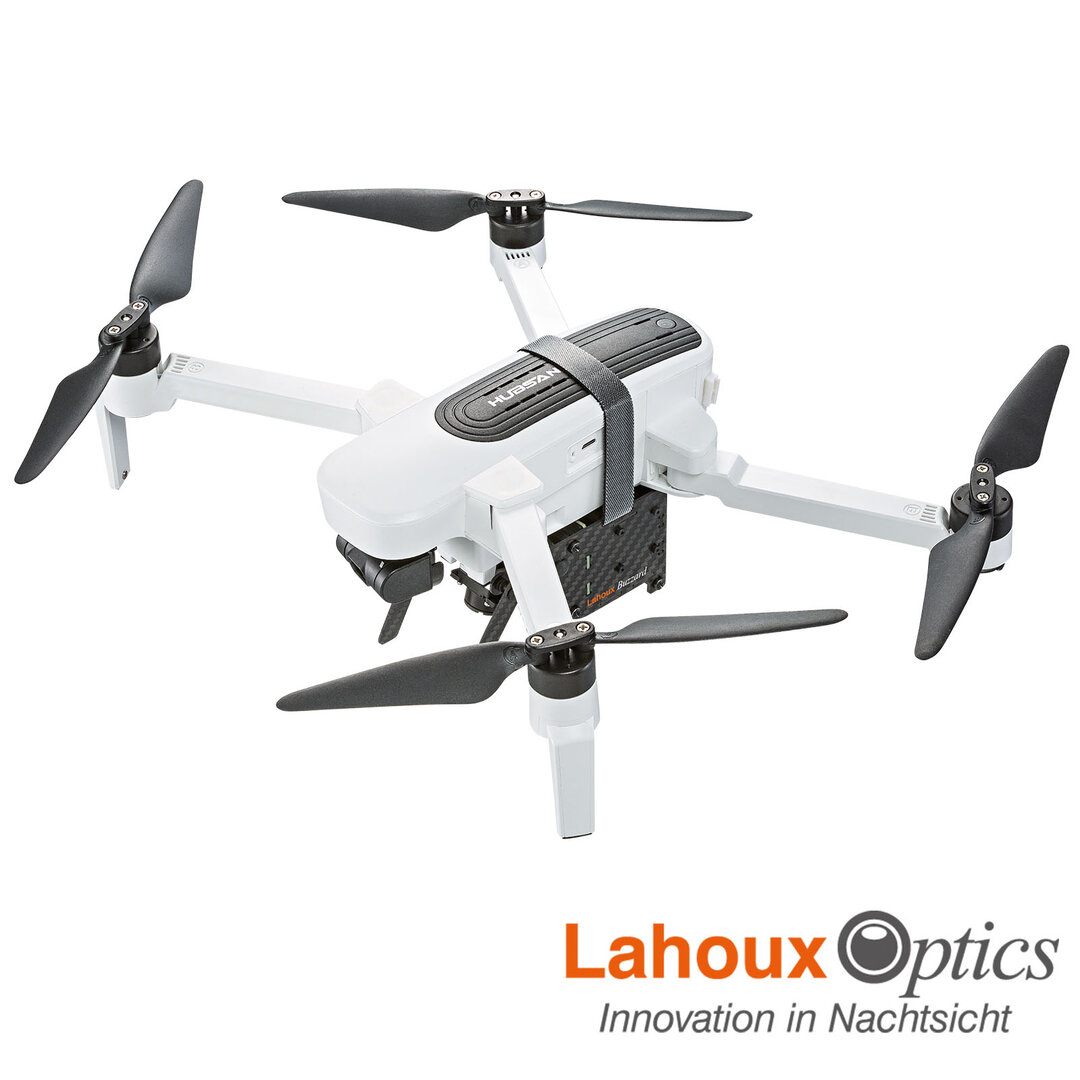

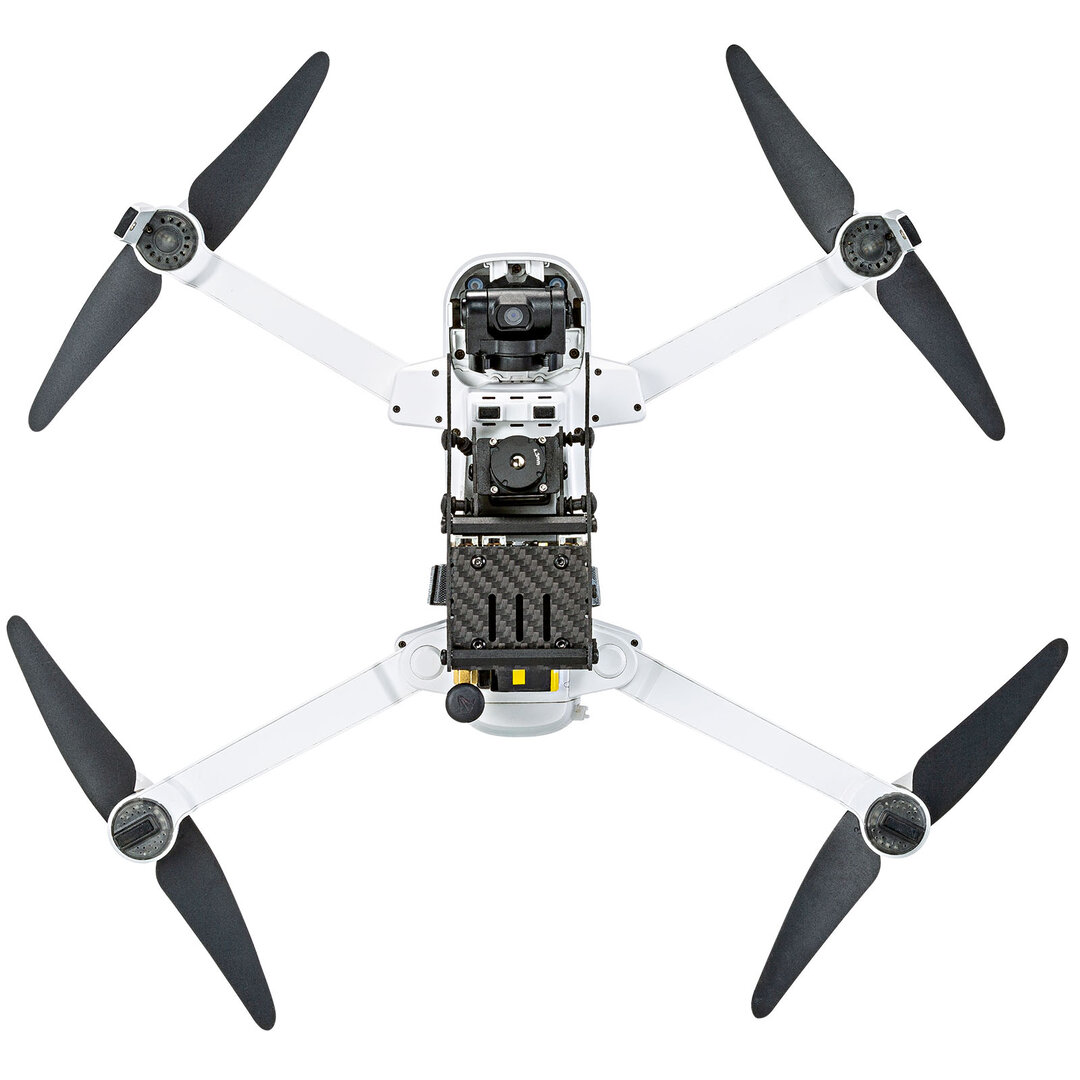

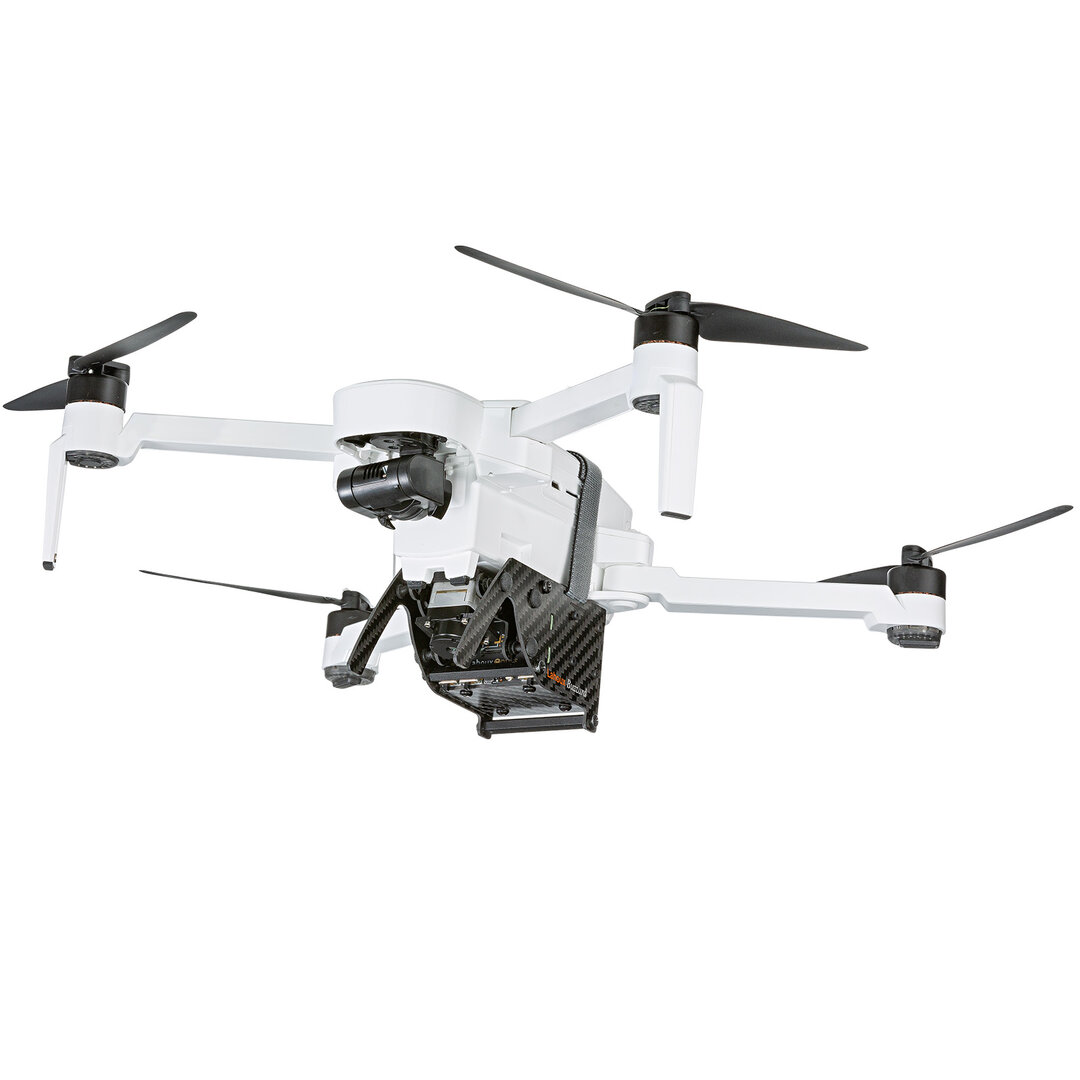

The Lahoux Buzzard is a thermal imaging clip-on designed for a C1 class drone. Applications are wide ranging, for instance security & surveillance, anti-poaching, agricultural use, nature conservation, rescuing fawns and birds before mowing, industrial inspection amongst others. The video transmitter gives an operational range of up to 500 meters. The thermal imaging module has a resolution of 320×256 pixels. The search area is 19.4 x 15 meters at 30 meters altitude.

Comes standard with the following accessories:

Monitor, Tripod, Drone.

Advantages

• Lightweight composite carbon fiber construction
• Easy to attach to and remove from various drones
• Video transmission via market leading hardware
• On-board video recorder
• Thermal image is transmitted to an LCD monitor on a tripod
• Includes drone, monitor and tripod

Detector

Type/Resolution: VOx/ 320 x 256 pixels

Pixel pitch: 12 µm

Frame rate: 60 Hz

Optics

Field of view: 32.9° × 26.6°

Field of view per pixel: 0.1 × 0.1°

Observable area at 100 meter: 64.7 x 50.1

Area per pixel at 100 meters: 0.2 × 0.2 m

Electronics

Video transmitter frequency: 5.8 GHz

Video transmitter power: 25 mW

Internal recording: Yes

Recording resolution: 640 x 480

Operating

Power supply: 9V rechargeable LiPO

Battery lifetime: > 1 hour

Encapsulation: IP20

Dimensions: L 138 × W 59 × H 58 mm

Weight: 0,115 kg

DRI (detection / recognition / identification):

• Vehicle (4.00 × 1.75 m)  – (Detection 956m / Recognition 239m / Identification 120m) meters.
• Human (1.75 × 0.75 m) – (Detection 414m / Recognition 104m / Identification 52m) meters.
• Fawn (0.5 × 0.5 m) – (Detection 180m / Recognition 45m / Identification 23m) meters.
