Het is mogelijk om de Nederlandse taal te selecteren in het toestel

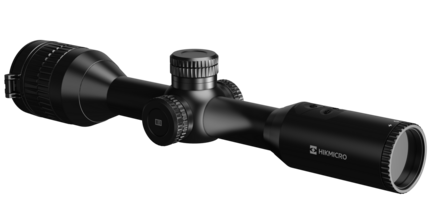

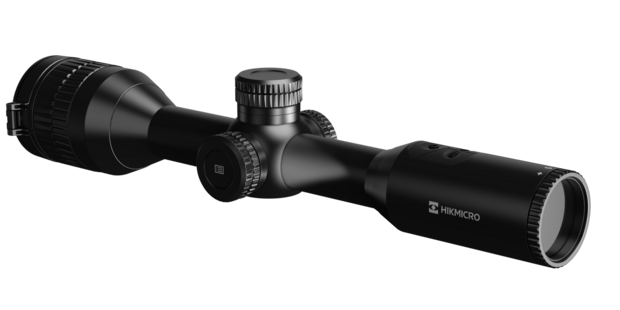

HIKMICRO STELLAR SQ50 Thermal Image Scope has 640×512 thermal detector and 1024*768 OLED display, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The traditional-style 50mm Tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters
Key Features
- 640×512 thermal resolution, high sensitivity detector, NETD< 35 mK (25°C, F# = 1.0)
- Supports audio recording
- Supports recoil-activation recording
- Supports video recording and snapshot, built-in EMMC (64 GB)
- 1024*768 resolution 0.39-inch OLED display
- Observation Distance up to 2600 m
- Wi-Fi Code: always the 9 last numbers and letters of the Serial number
Specifications
Thermal Module
Image Sensor: Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: less than 35 mK (25°C, F# = 1.0)
Lens (Focal Length): 50 mm
Detection Range: 2600 m
Min. Focusing Distance: 5m
Field of View: 8.78° x 7.03°
F number: F1.0
Magnification: 3.85x
Image Display
Display: 1024 × 768, 0.39 inch, OLED
Palettes: Black hot, white hot, red hot, fusion
Exit Pupil: 5 mm
Eye Relief: 60 mm
Diopter (Range): -5D to +3D
Observation Distance: 2600 m
Contrast Adjustment: Yes
Brightness Adjustment: Yes
System

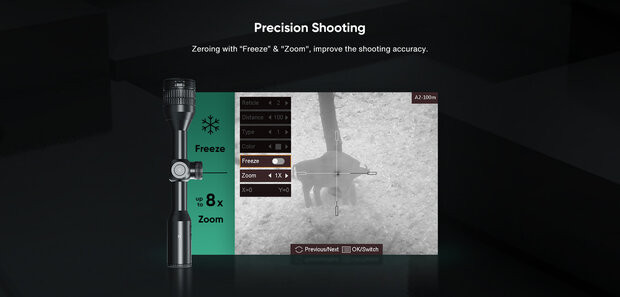

Digital Zoom: 1×, 2×, 4×, 8×
Capture Snapshot: Yes
Record Video: On-board video recording
Standby Mode: Yes
Storage: Built-in EMMC (64 GB)
PIP: Yes
DPC: Yes
Hotspot: Yes
Uniformity Correction: Auto, Manual, External Correction
Hot Track: Yes

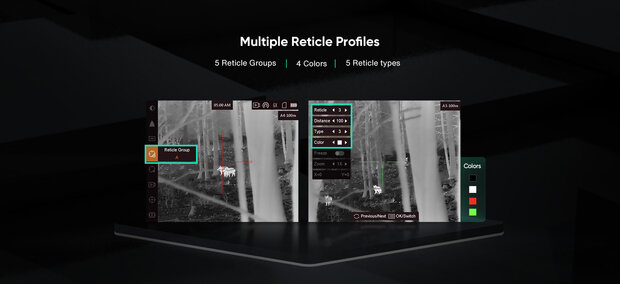

Reticle: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Max. Recoil: 1000g
Power Supply
Battery Type: Two rechargeable Lithium batteries (internal) and one replaceable CR123A (external)

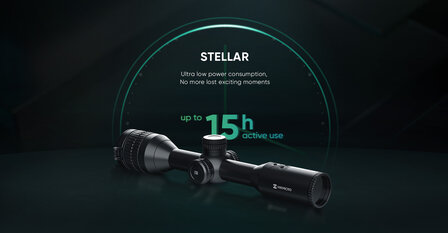

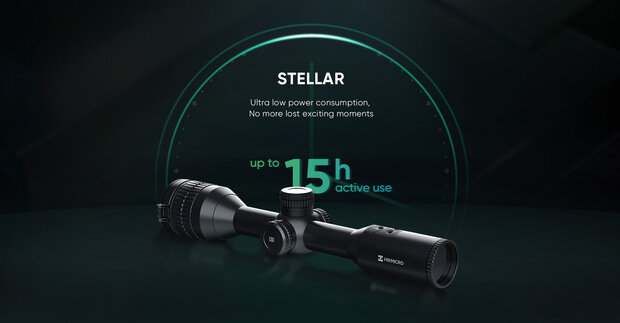

Battery Operating Time: 15 hours continuous running (@25°C, Wi-Fi off)
Battery Capacity Display: Yes
Anti-reverse Battery Connection: Yes
Overvoltage Protection: Yes
Power Supply: 5 V DC/2 A, USB Type-C interface, Supports QC3.0
General
Work Temperature/Humidity: -30°C to 55°C (-22°F to 131°F)
Protection Level: IP67
Dimension: Dimension 420mm × 78.1 mm × 82 mm
Weight: 970 g without eyepiece and CR123A
Wi-Fi Code: always the 9 last numbers and letters of the Serial number
Accesoires
What's in the box
- Hikmicro Stellar SQ50
- Quick start guide
- Battery CR123A (x1)
- Type-C Cable
- Dust-free cloth
- Bag
