Pulsar Helion XQ50F Thermal imaging viewer
Digital zoom: Digital zoom
Frost-resistant: Frost resistant
Built-in video recorder: The device is equipped with an integrated video recorder
Degree of protection IPX7: Protection against water exposure during short-time submersion
High resolution: Sharp and detailed image
Specifications
- Sensor: 384x288 @ 17 µm
- Magnification: 4.1 ... 16.4x (smooth zoom)
- Detection range: 1800 m

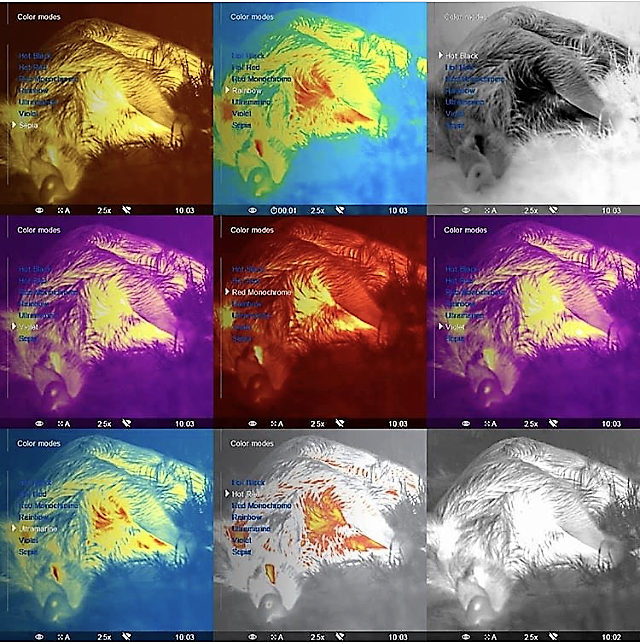

- Color palettes: 8
- Wi-Fi module: integrated
- Video / sound recorder: integrated
- Objective lens: interchangeable
- Operating temperatures: -25 … +50 °C
The best image definition

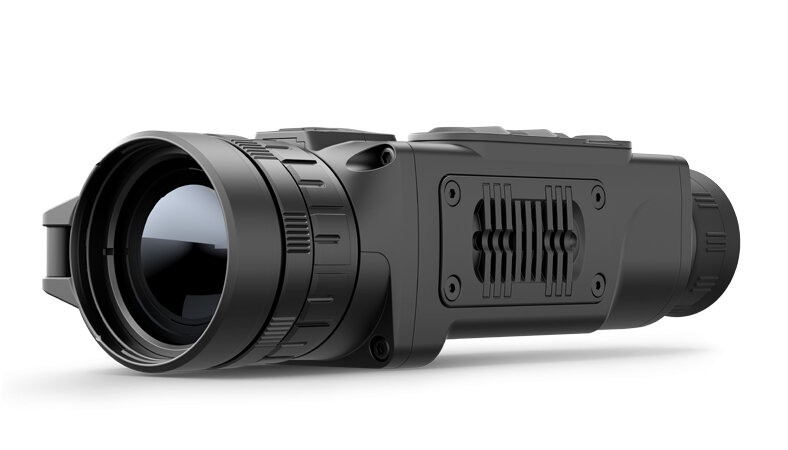

A heat sink, located on the device's body, effectively prevents heat build-up from the sensor and other components while also significantly reducing temperature and noise sensitivity, especially between calibrations.
Variable magnification
Helion models include variable magnification, up to 8x depending on model, and feature both 2x step-up and smooth, graduated magnification for a truly optimum, customized field of view.
High image frequency
At a high refresh rate of 50Hz, the Helion provides comfortable viewing throughout dynamic, rapid motion.
Detection distance up to 1800 m
Depending on model, Helion thermal imasing scopes detect big-game-size heat signatures up to 1800 meters away
Built-in video recording
Capturing still images and video is seamless with the Helionl’s built-in video recorder. Image and video content is stored internally and can easily be transferred to PC/laptop via wired connection or Wi-Fi.
Mobile-friendly (iOS, Android) with remote control and live internet streaming
The highlight of the Helion is the ability to link via Wi-Fi the device with Android and iOS based mobile units using the free mobile application Stream Vision. The Stream Vision software connects the device with Android/iOS mobile unit (smartphone or tablet) which enables you to receive footage in the real time mode, to distantly operate the device with your smartphone, as well to stream online the image captured by the device to Youtube.
Quick-change B-Pack power units
Helion includes a progressive autonomous B-Pack power supply consisting of a quick-detach, rechargeable IPS5, 5.2A-h battery pack designed to deliver over 8 hrs. of operation on maximum mode. Higher-powered IPS10 battery packs, as well as CR123A and AA battery cases, also are available and provide a perfect off-the-grid power solution.
Stadiametric rangefinder
Based on estimated heights of observed objects, the stadiametric rangefinding reticle makes determining precise distances fast, easy, reliable and repeatable.
Fully waterproof
IPX7 waterproof-rated protection ensures the Helion performs perfectly in wet weather, even during intense rain, snowfall and submersion in 3 ft. of water for up to 30 min. (IEC 60529).
Wide range of operating temperatures
With a frost-resistant AMOLED display, the Helion thermal imaging scope is designed to deliver flawless performance at an extreme temperature range of -25° ... +50°Ð¡.
Fully-functional wireless control (optional)
The ergonomic, wireless remote control, with encoder wheel, puts the full range of the Helion’s capabilities at your fingertips for comfortable, convenient, hands-off operation.
Display-off mode
During short periods of inactivity and better concealment, Display Off powers down the display without interrupting other operating functions. Using Display Off means a much faster restart time when you need it most.
User-friendly interface
The Helion is designed with ease-of-operation in mind. User feedback has resulted in the most friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Updatable software
For initial setup and additional updates, the iOS and Android compatible Stream Vision App ensures the most recent Helion software versions are available.
What's in the box
Helion Thermal Imaging Scope | IPS5 Battery Pack | Battery charger with mains charger | USB cable | Carrying case | Hand strap | User manual | Lens cloth | Warranty card
